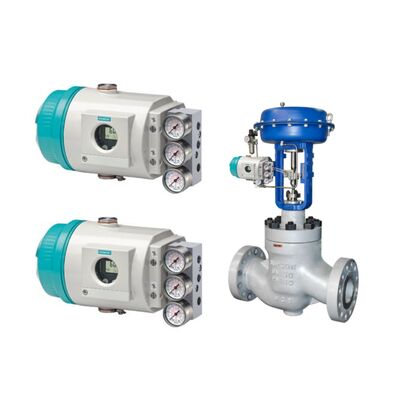

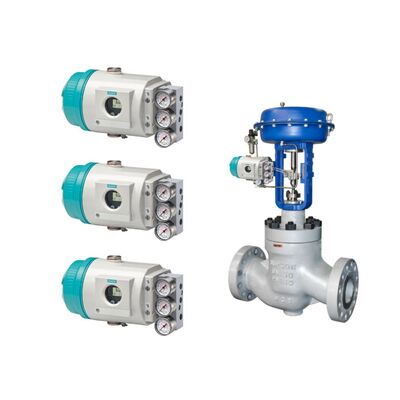

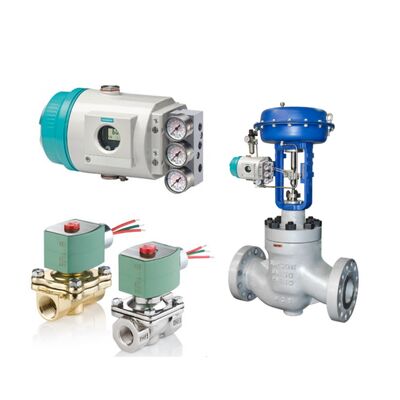

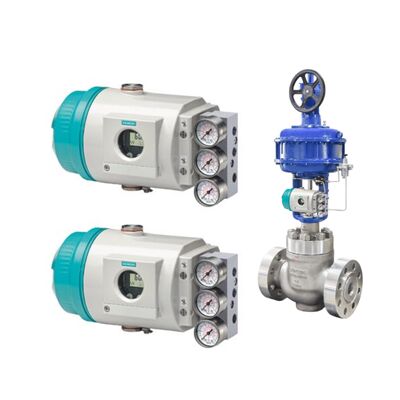

Engineered for maximum reliability, the Siemens SIPART PS2 model 6DR5125-0EG01-0AA2 is a smart digital positioner that combines outstanding control performance with minimal air consumption. This aluminum-enclosure HART version provides seamless integration into existing 4-20 mA control loops and delivers advanced diagnostics to keep your process valves healthy.
| Parameter | Value |
|---|---|
| Input signal | 4–20 mA (2-wire), HART communication |
| Enclosure material | Aluminum, single-acting pneumatic |
| Operating range | 3–130 mm stroke or 30–100° rotation |
| Pneumatic flow (inlet/exhaust) | Up to 9.8 Nm³/h (inlet) / 19.2 Nm³/h (exhaust) |
| Supply pressure | 1.4–7 bar |
| Ambient temperature | –30 °C to +80 °C (optional –40 °C) |
| Degree of protection | IP66 / NEMA 4X, C5-M corrosion class |
| Communication | HART 7 |
| Load voltage (typical) | 6.6 V at 20 mA |
| Weight | Approx. 1.3 kg (2.86 lb) |
Perfect for continuous control in aggressive or hazardous environments — offshore platforms, chemical reactors, power-plant boiler dampers, and pharmaceutical batch processes.
Q: How do I perform a Partial Stroke Test?
A: Via HART command or local pushbuttons — results stored in the device.
Q: Can I mount it on a part-turn actuator?
A: Yes — VDI/VDE 3845 mounting kits available.
Q: What is the typical air consumption in control mode?
A: Less than 0.036 Nm³/h — one of the lowest in its class.
