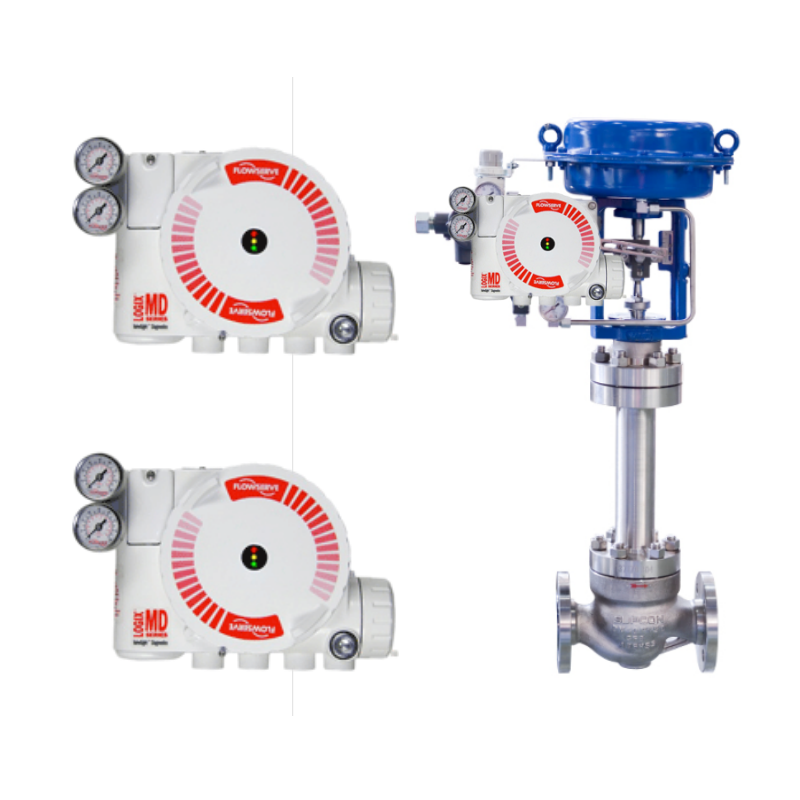

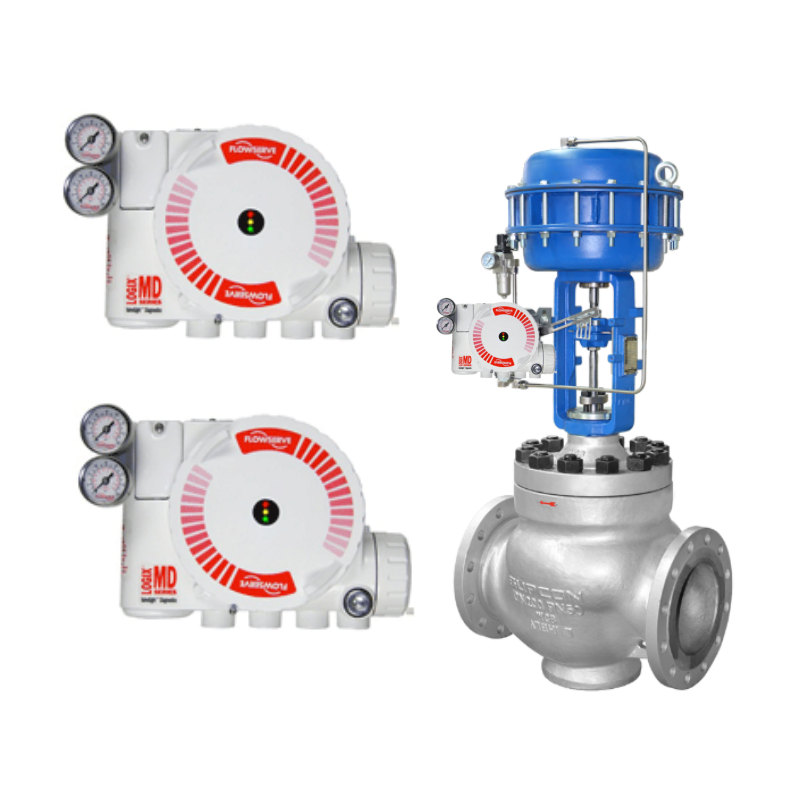

The Flowserve Logix 3200MD is a high-performance, two-wire 4-20 mA input digital valve positioner designed for precise control of both linear and rotary actuators. It features HART protocol for two-way remote communication and is fully powered by the control signal. Configurable via a local user interface with QUICK-CAL functionality, it supports single- and double-acting actuators in air-to-open or air-to-close configurations. Built for reliability in demanding industrial environments, it offers exceptional accuracy, low air consumption, and advanced diagnostic capabilities (available in Advanced/Pro models).
| Category | Specification |
|---|---|
| Power Supply | Two-wire 4-20 mA, 10-30 VDC |
| Compliance Voltage | 10.0 VDC @ 20 mA |
| Communications | HART Protocol |
| Min. Operating Current | 3.6 mA (no AO), 3.85 mA (with AO) |
| Deadband | < 0.1% full scale |
| Repeatability | < 0.05% full scale |
| Linearity | < 0.5% (rotary), < 0.8% (linear) |
| Air Consumption | < 0.3 SCFM @ 60 psi |
| Operating Temperature | -40 to 176°F (-40 to 80°C) |
| Housing Material | Cast aluminum (powder-painted) or stainless steel |
| Weight | 8.3 lb (aluminum), 20.5 lb (stainless steel) |
Ideal for process control in oil & gas, chemical, power generation, and water treatment industries. Suitable for control valves on linear Mark One or rotary Valtek actuators, including hazardous locations requiring certified equipment.
