Masoneilan SV II AP Advanced Performance Digital Valve Positioner SVI2-21123111

1
MOQ
US $1750.00 - 1900.00/ Set
가격
Masoneilan SV II AP Advanced Performance Digital Valve Positioner SVI2-21123111
풍모 갤러리 제품 설명 평점 및 리뷰 따옴표를 요구하십시오
풍모
제품 사양
신호 - 통신: 4~20mA 이상의 HART 5 또는 7
진단: 표준 진단
건축 자재: 구리가 함유되지 않은 알루미늄 하우징
밸브 크기: 1/4npt
기본 정보
원래 장소: 중국
브랜드 이름: Masoneilan
모델 번호: SV II
결제 및 배송 조건
포장 세부 사항: 판지 상자/나무 상자
배달 시간: 4~6주
지불 조건: 티/티
공급 능력: 매년마다 3000개 세트
제품 설명

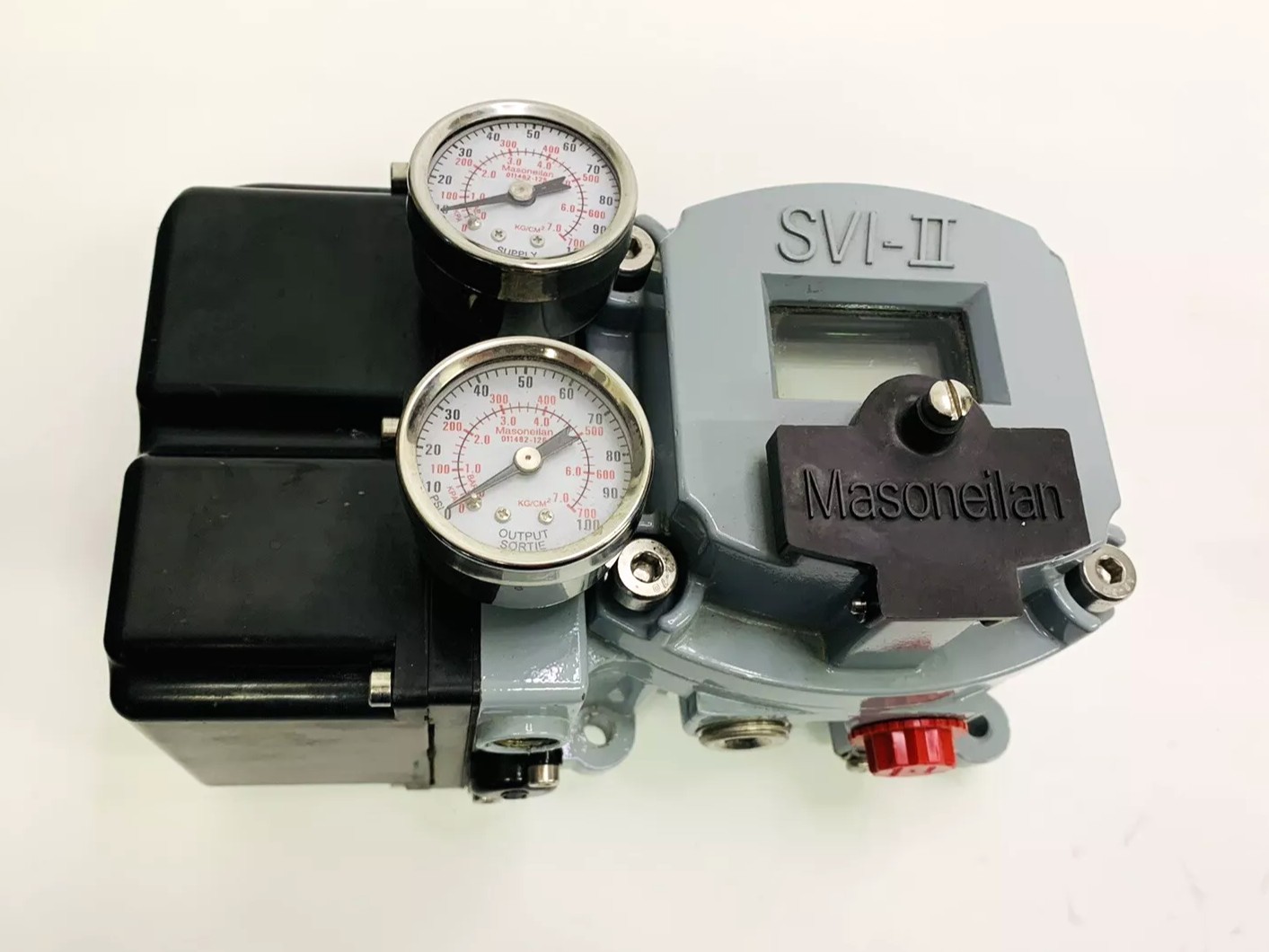

Masoneilan SV II AP Advanced Performance Digital Valve Positioner (Model: SVI2-21123111)
Product Overview
  1. 32-bit microprocessor-powered smart valve positioner with 2-wire 4-20mA control signal and bi-directional HART protocol communication for remote configuration and real-time monitoring
  2. Adopts non-contact position sensing technology with no internal moving parts, delivering high positioning accuracy and strong resistance to vibration, temperature fluctuation and corrosion
  3. Universal modular design fits both single/double-acting pneumatic actuators and linear/rotary valves, enabling direct retrofit for Masoneilan and third-party valve assemblies.
Technical Specifications
ParameterSpecification
Input Signal4-20 mA with HART 5/7 Protocol
Supply PressureSingle-acting: 1.4–6.9 bar (20–100 psig); Double-acting: 1.4–10.3 bar (20–150 psig)
Positioning Accuracy±0.5% of full span
Repeatability±0.3% of full span
Flow Capacity280 SLPM @ 30 psi
Operating Temperature-50°C to +85°C
Enclosure RatingIP66
Housing MaterialCopper-free aluminum with epoxy coating
CertificationsATEX, IECEx, FM, CSA (hazardous area approved)
Actuator CompatibilitySingle-acting & double-acting pneumatic actuators (linear / rotary)
Application Industry
  1. Oil & Gas: Deployed in upstream production, midstream pipelines and refinery distillation units, certified for safe operation in explosive hazardous zonesBaker Hugh....
  2. Petrochemical & Chemical: Applied in reactor flow control, hydroprocessing, cracking and fractionation processes, compatible with corrosive process media environmentsMade-in-Ch....
  3. Power Generation: Used for steam turbine systems, heat recovery steam generators and balance-of-plant valve automation, ensuring stable regulation of water and steam loopsBaker Hugh....
Common Problems & Solutions
  1. Position drift / calibration offset: Trigger auto-stop and auto-tune function via local buttons or ValVue software; verify stable supply air pressure and clean filter regulatorBaker Hugh....
  2. No pneumatic output / signal non-response: Inspect 4-20mA input wiring and power supply; check for blockage in air supply path and I/P converter module.
  3. Fault alarm activation: Record error code via HART communicator; check magnet mounting alignment; restore factory default settings if parameter configuration is abnormalBaker Hugh....
Replacement Models
  1. SVI2-21113111: Single-acting basic configuration of SVI II AP series, fully interchangeable mounting footprint for direct drop-in replacementAlibaba.co....
  2. SVI2-22123121: Double-acting variant with enhanced diagnostic functions, compatible with existing installation brackets and accessoriesMade-in-Ch....
  3. Masoneilan SVI3 Series: Third-generation upgraded digital positioner with optimized control algorithm, backward compatible with SVI II AP mounting interfacesMade-in-Ch....
Why Buy From Us
  1. 100% original authentic Baker Hughes Masoneilan products with full factory quality certificates and 12-month standard warranty.
  2. Dedicated technical team with certified flow control engineers, providing pre-sales model selection and after-sales commissioning troubleshooting support.
  3. Rich overseas trade experience, supporting EXW, FOB, CIF and other trade terms with complete export customs clearance documents.

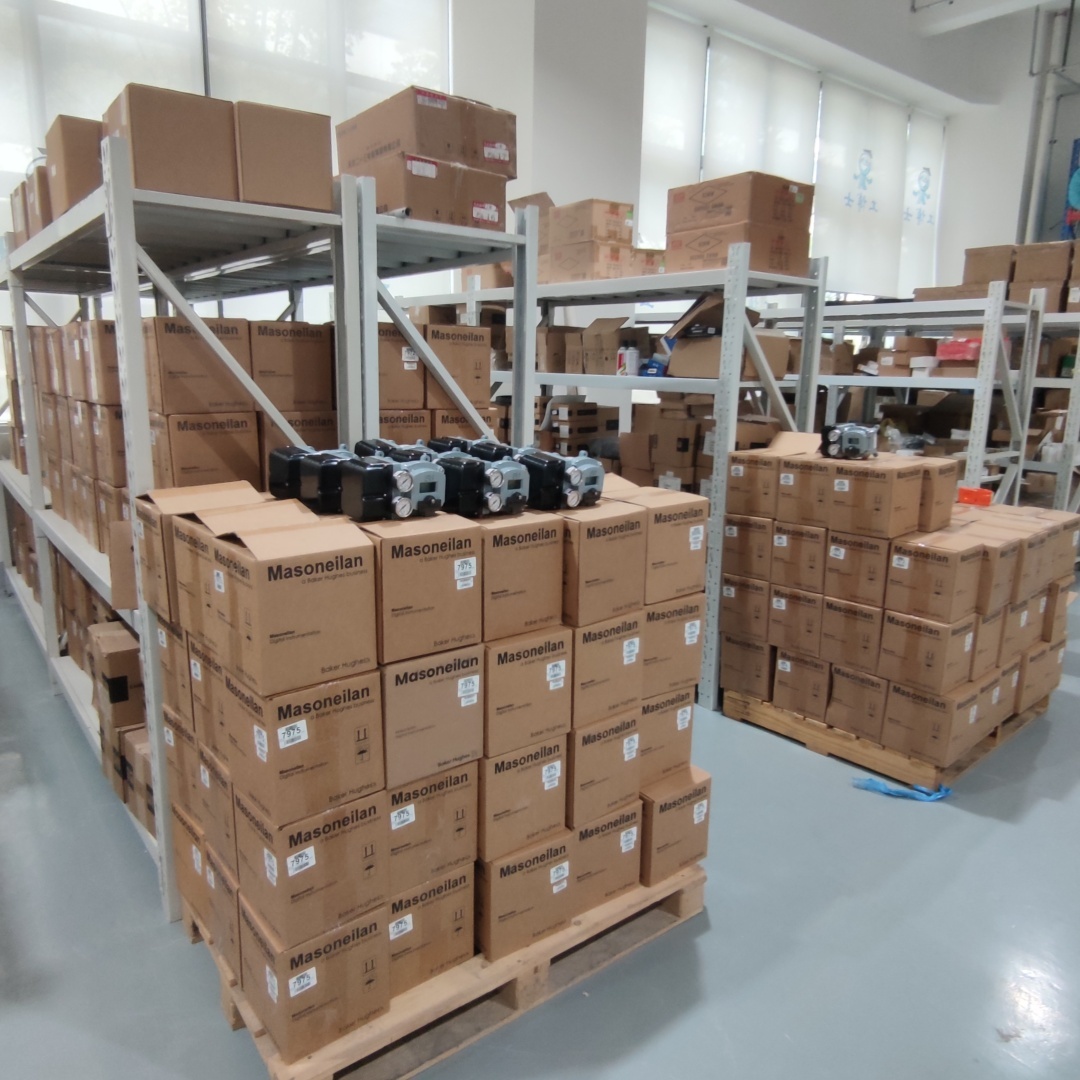

Stock & Delivery Time
  1. Standard model SVI2-21123111 is kept in local warehouse stock, can be dispatched within 2 working days upon payment confirmation.
  2. Bulk orders (10 units and above): 7–10 working days preparation lead time with reinforced export packaging.
  3. International logistics: Express delivery (DHL/FedEx/UPS) takes 5–7 working days to most global regions; sea freight available for large volume orders.
