with Rotork YT200 Filter Regulator for Petrochemical & Power

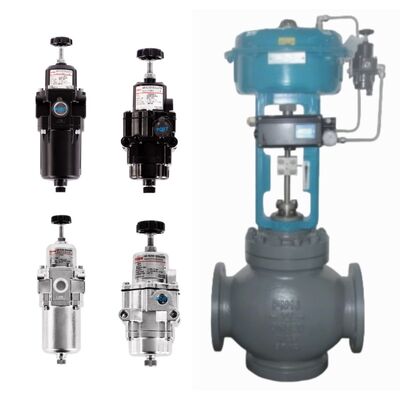

The Wuzhong ACB/APC Quick Change Cage Control Valve is a high-performance pneumatic valve designed for demanding industrial applications. Equipped with the Rotork YT200 filter regulator, it ensures stable air supply and reliable operation. Its cage-guided trim reduces noise and cavitation, while the quick-change design enables fast maintenance without removing the valve from the pipeline, making it ideal for continuous petrochemical and power plant operations.
| Item | Specification |
|---|---|
| Valve Type | Cage Guided Control Valve |
| Model Series | ACB / APC |
| Nominal Size | DN15 ~ DN400 (1/2" ~ 16") |
| High Pressure Size | DN25 ~ DN200 (1" ~ 8") |
| Pressure Rating | ANSI Class 150 ~ Class 1500 |
| Temperature Range | -46°C ~ +530°C (with optional bonnet designs) |

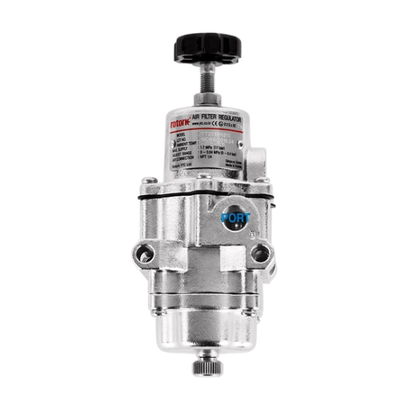

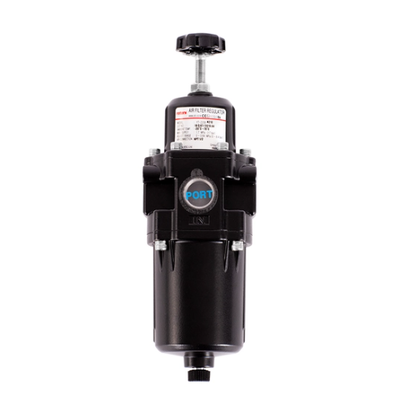

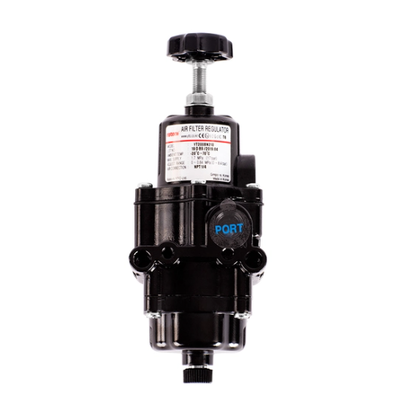

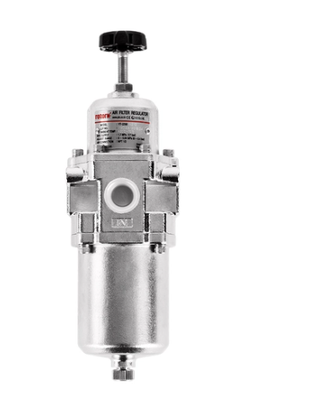

| Filter Regulator | Rotork YT200 Air Filter Regulator |
| Actuator Type | Pneumatic Diaphragm Actuator |
| Flow Characteristic | Linear / Equal Percentage |
| Body Material | WCB, CF8, CF8M, or custom alloy |
A: Yes, it is rated up to ANSI Class 1500, making it suitable for high-pressure process lines in petrochemical and power plants.
A: The cage trim can be replaced on-site without removing the entire valve from the pipeline, reducing downtime and maintenance costs.
A: Yes, the valve is supplied with the Rotork YT200 filter regulator for stable and clean air supply to the pneumatic actuator.
A: Yes, extended bonnet designs and special materials (e.g., alloy steel) are available for high/low temperatures and corrosive applications.
For inquiries, quotations, or technical support, please reach out to us through:
wechat / what's app / phone number: +86 13472860702
