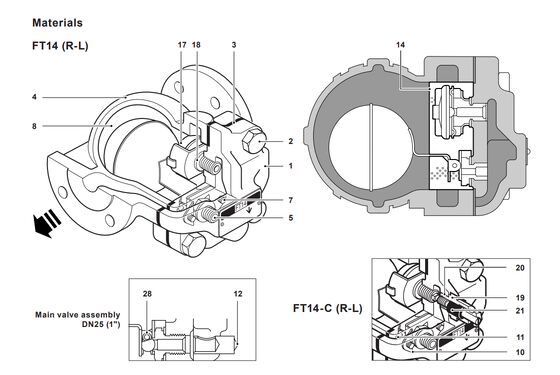

The Spirax Sarco FT14 is a robust SG iron-bodied ball float steam trap (Float & Thermostatic type) with stainless steel working internals and an integral automatic thermostatic air vent. Designed for flanged connections, it is available in sizes DN15, DN20 and DN25 (½", ¾", 1"). The trap can be maintained without disturbing the pipework and is supplied in horizontal flow configurations (R-L or L-R), with on-site adjustment possible for downward vertical flow applications.
| Parameter | Value |
|---|---|
| Sizes | DN15, DN20, DN25 (½", ¾", 1") |
| Connections | Flanged EN 1092 PN16, ASME 150, JIS/KS 20 |
| Body material | SG iron (EN-GJS-400-15) |
| Maximum operating pressure (PMO) | 14 bar g (203 psi g) saturated steam |
| Maximum differential pressure | 4.5 / 10 / 14 bar (FT14-4.5 / -10 / -14) |
| Maximum operating temperature | 250 °C @ 13 bar g (482 °F @ 189 psi g) |
| Minimum operating temperature | 0 °C (32 °F) |
| Cold hydraulic test pressure | 24 bar g (348 psi g) |
| Capsule type | BPG9/32 |

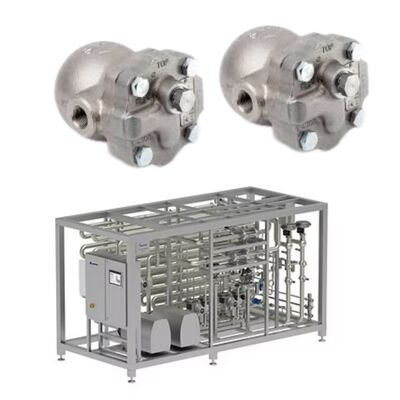

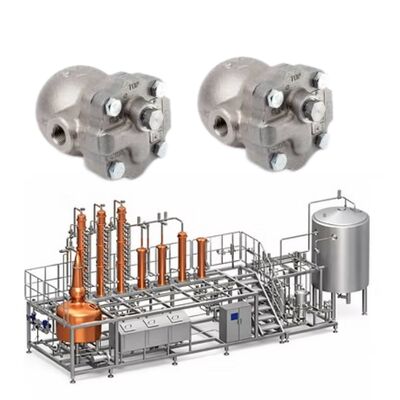

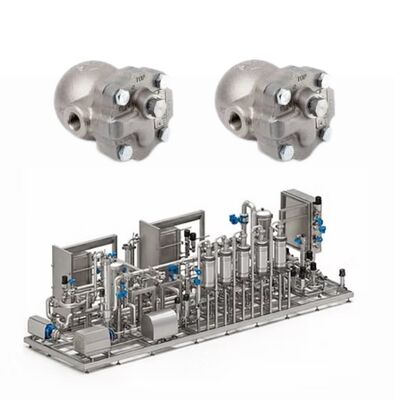

Applications Ideal for process steam lines, heat exchangers, steam mains, and heating systems in industrial plants, food & beverage, and hospitals where reliable condensate removal and air venting are critical.
Q: Can the flow direction be changed on site? A: Yes – the cover orientation can be adjusted for downward vertical flow applications.
Q: What is the purpose of the optional 'C’ designation? A: It adds a manually adjustable steam lock release (SLR) needle valve in addition to the standard air vent.
Q: Is the FT14 suitable for superheated steam? A: Yes, the BPG9/32 capsule is rated for 150 °C superheat at 0 bar g and 50 °C at 32 bar g.
