Chinese CHUAN YI HKG10 Multi Layer Sleeve High Pressure Differential Control Valve Fisher DVC6200 Positioner

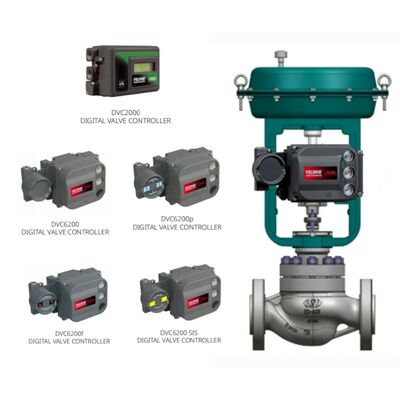

The Chinese CHUAN YI HKG10 Multi Layer Sleeve High Pressure Differential Control Valve, integrated with the Fisher DVC6200 Digital Valve Controller, is a high-performance, integrated control solution engineered for harsh industrial process environments that demand precise pressure, flow, and valve position regulation. Developed by CHUAN YI, a trusted manufacturer of industrial valves, the HKG10 control valve features an advanced multi-layer sleeve structure and optimized valve trim design, enabling efficient pressure reduction, noise attenuation, and erosion resistance under high-temperature and high-pressure differential operating conditions. Complementing this, the Fisher DVC6200 positioner—an industry-leading digital valve controller—converts a two-wire 4-20 mA control signal into a stable pneumatic output to drive the valve actuator, ensuring accurate, real-time valve position control with minimal drift. This integrated system combines CHUAN YI’s robust valve craftsmanship with Fisher’s cutting-edge control technology, delivering reliability, precision, and efficiency for critical industrial applications.

• Advanced Multi-Layer Sleeve Design: The specialized multi-layer sleeve structure with intricate throttling channels provides high damping, gradually reducing fluid pressure and velocity to minimize cavitation, erosion, and noise—achieving noise reduction of up to 30 decibels, ideal for high-noise industrial environments.
• High Pressure Differential Adaptability: Specifically engineered to operate stably under large pressure differentials, the valve maintains consistent performance even in harsh conditions with frequent pressure fluctuations, eliminating valve jamming or damage.
• Low Leakage Performance: Complies with the ANSI FCI 70-2-2013 standard for leakage control, ensuring tight sealing to reduce medium waste, prevent environmental pollution, and enhance process safety.
• Durable & Compact Construction: Equipped with a multi-spring diaphragm actuator or cylinder actuator (single/double-acting), the valve features a compact design, large output force, and wear-resistant internal components, supporting long-term continuous operation with minimal maintenance.
• Versatile Structural Options: Available in straight-through (HKG-10000) and angle (HKG-10100) configurations, compatible with various installation layouts and process requirements.
• Customizable Material Selection: Valve body and trim materials (carbon steel, stainless steel, Stellite surfacing) can be customized based on the process medium (corrosive, high-temperature, or abrasive) to extend service life.

• Linkage-Less Non-Contact Position Feedback: Utilizes a high-precision non-contact feedback system, eliminating physical contact between the valve stem and positioner to avoid wear, reduce maintenance needs, and maximize service life.
• Superior Environmental Adaptability: Fully encapsulated electronics resist vibration, extreme temperatures, and corrosive atmospheres; the weather-tight wiring terminal box isolates field wiring, ensuring stable operation in harsh industrial settings.
• High Precision & Fast Response: Two-stage positioning design enables quick response to large setpoint changes and precise control for small adjustments, ensuring valve position accuracy within ±0.1% of full scale.
• Easy Commissioning & Maintenance: HART communication supports local or remote commissioning; modular design allows replacement of critical components without disconnecting field wiring or pneumatic tubing, reducing downtime.
• Comprehensive Diagnostics: Built-in self-diagnostic capabilities monitor valve performance, detect potential issues (e.g., actuator wear, air leaks) in real time, and provide health reports—enabling predictive maintenance and increasing equipment uptime.
• Wide Compatibility: Compatible with most pneumatic actuators (diaphragm, cylinder) and supports integration with DCS (Distributed Control Systems) for centralized process control.

The Chinese CHUAN YI HKG10 Multi Layer Sleeve High Pressure Differential Control Valve with Fisher DVC6200 Positioner is widely applicable in various industrial sectors that require precise control of high-pressure differential fluids, including:

• Petrochemical Industry: Used in refining, chemical synthesis, and natural gas processing processes—such as pressure regulation in distillation towers, reactor feed lines, and pipeline transportation systems, where high pressure differentials and stable control are critical.
• Power Generation: Applied in thermal power plants, nuclear power plants, and renewable energy facilities—for feedwater regulation, steam pressure control, and flue gas treatment systems, ensuring efficient and safe operation of power units.
• Oil & Gas Industry: Suitable for upstream oil extraction, midstream pipeline transportation, and downstream processing—controlling crude oil, natural gas, and refined product flow under high-pressure and high-temperature conditions.
• Metallurgical Industry: Used in steelmaking, non-ferrous metal smelting, and heat treatment processes—regulating cooling water, steam, and compressed air flow to maintain stable production temperatures and pressures.
• Water Treatment & Environmental Protection: Applied in high-pressure water treatment systems, wastewater treatment plants, and desalination facilities—controlling water flow and pressure to ensure treatment efficiency and compliance with environmental standards.
• Pharmaceutical & Food Industry: Used in high-pressure sterilization, fluid mixing, and processing lines—where low leakage, precise control, and cleanability are required to meet industry hygiene standards.

A1: The multi-layer sleeve design provides gradual pressure reduction and velocity control through intricate throttling channels, effectively minimizing cavitation, erosion, and noise. This design extends the valve’s service life and ensures stable operation under high-pressure differential conditions, which is critical for harsh industrial environments.

A2: Yes. The Fisher DVC6200 supports HART 7 communication, allowing remote commissioning, parameter adjustment, and diagnostics via a HART communicator or DCS system. This eliminates the need for on-site operation, reducing maintenance time and labor costs.

A3: The valve body is available in carbon steel (WCB), stainless steel (CF8, CF8M), and alloy steel; the valve trim can be stainless steel or Stellite-surfaced. The selection depends on the process medium (e.g., corrosive media require stainless steel; abrasive/cavitating media require Stellite surfacing) and operating temperature/pressure.

A4: Under normal operating conditions and regular maintenance, the CHUAN YI HKG10 valve has a service life of 5-8 years, while the Fisher DVC6200 positioner can operate stably for 8-10 years. The actual service life may vary based on operating conditions, maintenance frequency, and medium characteristics.

A5: Yes. The Fisher DVC6200 positioner supports HART communication, which is widely compatible with most industrial DCS systems (e.g., Siemens, Emerson, Honeywell). The system can be easily integrated into existing control networks for centralized monitoring and control.

For more information about the Chinese CHUAN YI HKG10 Multi Layer Sleeve High Pressure Differential Control Valve with Fisher DVC6200 Positioner, including pricing, customization options, and technical support, please contact us via the following channels:

Our professional team will respond to your inquiries within 24 hours and provide tailored solutions to meet your industrial needs.

We offer a full range of complementary products to support your industrial control systems, including:

• CHUAN YI HKG20 Multi Layer Sleeve Low Pressure Differential Control Valve: Suitable for low-pressure differential process environments, with the same reliable multi-layer sleeve design.
• Fisher DVC6000 Series Positioners: Including DVC6100 (single-acting) and DVC6300 (smart positioner with FOUNDATION Fieldbus), compatible with various valve types.
• Pneumatic Actuators: Single/double-acting piston actuators and diaphragm actuators, available in various sizes to match different valve specifications.
• Air Filter Regulators: High-precision filter regulators to ensure clean, stable air supply for the positioner and actuator, extending equipment life.
• Valve Position Indicators & Limit Switches: For real-time valve position feedback and interlock control, enhancing process safety.
