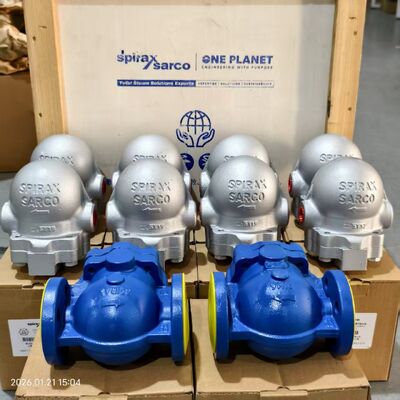

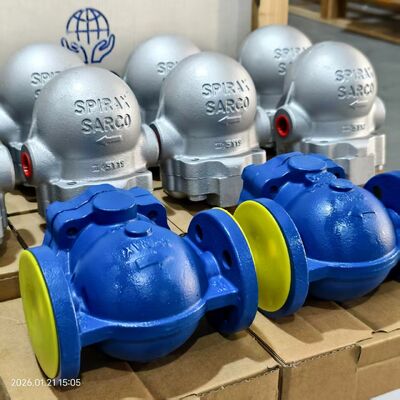

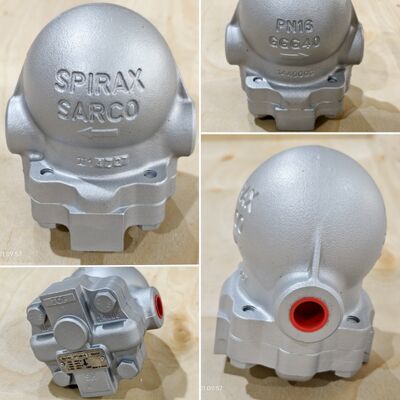

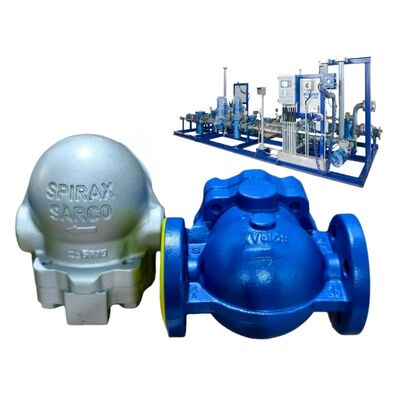

Steam Valves Spirax Sarco FT14 FT14X-10 FTGS14-10 Flanged Screwed Float Thermostatic Steam Trap

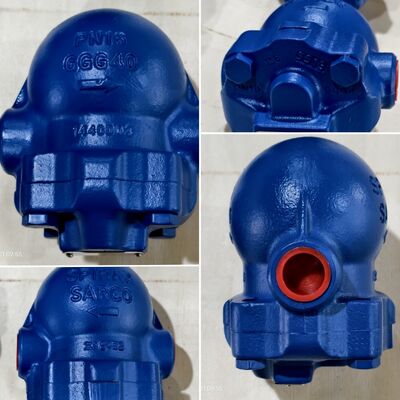

The FT14X-10 is a flanged ball float steam trap with 10 bar maximum operating pressure. It uses a stainless steel ball float mechanism together with an integral bimetallic air vent. The trap is designed for continuous condensate discharge and automatic air removal in medium-pressure steam systems. The body is made of SG iron (ductile cast iron), making it a cost-effective choice for general steam applications.

• Stainless steel ball float for reliable operation
• Integral bimetallic air vent for fast air discharge on cold start-up
• Continuous condensate drainage – no cycling or waterhammer risk
• High cold water capacity (increased by ≥50% on 4.5 bar models)
• Removable cover for in-line maintenance
• Available in SG iron body (FT14X)

• Model: FT14X-10
• Maximum Operating Pressure (PMO): 10 bar g (145 psi g)
• Maximum Differential Pressure: 10 bar
• Body Material: SG iron (ductile cast iron)
• Connections: Flanged (PN16 / ANSI 150 / ANSI 300 options)
• Air Vent: Integral bimetallic
• Discharge Mode: Continuous via ball float
• Cold Water Start-up Capacity: Significantly increased vs standard models

• Steam mains drainage
• Heat exchanger drainage
• Separator drainage
• Medium-pressure steam lines

Q: What is the max pressure? A: 10 bar g continuous operating pressure.

Q: Does it vent air automatically? A: Yes – built-in bimetallic air vent opens when cold.

Email:edwardzhao@gbsxj.com

Phone/WeChat/WhatsApp:+8615000725058

• FT14X-4.5 (lower pressure version)
• FTGS14 stainless steel version
• FT14 screwed pattern models
