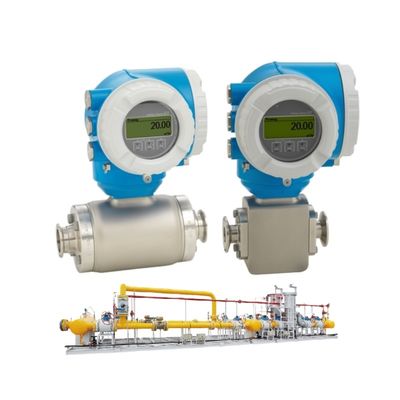

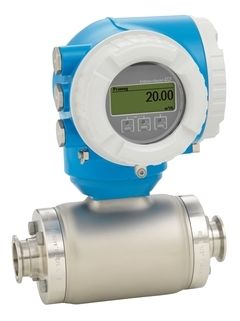

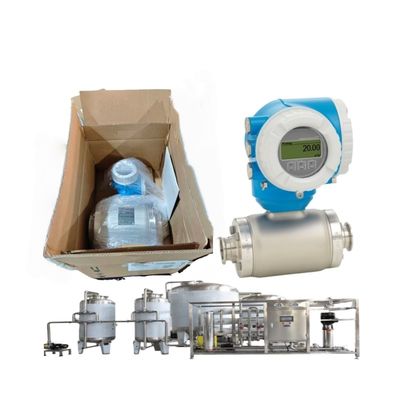

The Endress+Hauser 5H3B Proline Promag H 300 is a versatile electromagnetic flowmeter for dynamic food and beverage production lines. With PFA lining and one-sided access transmitter, it handles syrups, juices, and dairy products with ±0.5% accuracy. The remote display option and Bluetooth setup via FieldCare app simplify integration in filling machines and mixing vessels. Heartbeat Technology ensures compliance with HACCP and traceability requirements. With Modbus RS485 and IP69K protection, the 5H3B supports high-speed data logging for batch optimization and quality assurance.
| Parameter | Specification |
|---|---|
| Model | 5H3B Proline Promag H 300 |
| Measuring Principle | Electromagnetic |
| Size Range | DN 8 to DN 100 |
| Accuracy | ±0.5% o.r. ± 1 mm/s |
| Turndown Ratio | 1:100 |
| Process Temperature | -20°C to +130°C |
| Pressure Rating | PN 40 / Class 300 |
| Liner Material | PFA |
| Outputs | 4-20 mA HART, Modbus RS485 |
| Protection | IP69K |
| Certifications | 3-A, EHEDG, FDA |
Yes, +130°C with PFA liner.
No, full drainability with no welds.
Yes, Bluetooth FieldCare mobile.
DN 8 for micro-flow filling.
Yes, all wetted materials FDA approved.
