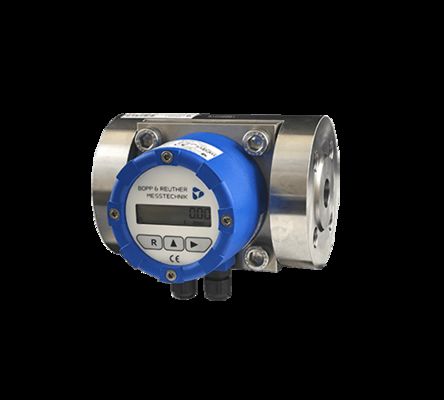

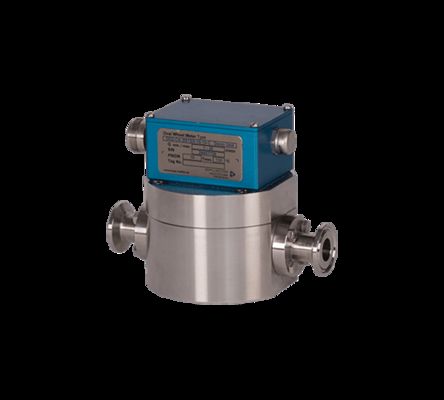

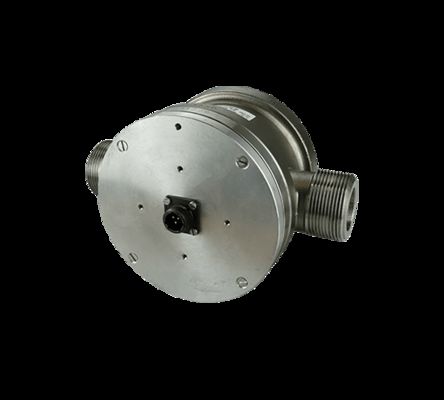

the Bopp & Reuther Oval Gear Flowmeter is a high-precision positive displacement meter engineered for accurate volume measurement of liquids in industrial processes. Featuring oval-shaped gears that trap and transport fluid, it delivers readings with ±0.1% accuracy for low to high viscosities, including aggressive and high-temperature media. With a robust design and modular construction, the flowmeter is ideal for custody transfer, blending, and filling applications in chemical, petrochemical, and food industries, offering reliable performance and minimal maintenance.
| Parameter | Specification |
|---|---|
| Measuring Principle | Oval Gear (Positive Displacement) |
| Accuracy | ±0.1% linearity |
| Repeatability | ±0.02% |
| Flow Range | 0.3 to 300 m³/h |
| Size Range | DN8 to DN200 |
| Pressure Rating | Up to 400 bar |
| Temperature Range | -40°C to +200°C |
| Viscosity Range | 0.5 to 1,000,000 cSt |
| Output | Pulse, 4-20 mA |
| Certifications | ATEX, IECEx |
Oval gear displacement for accurate volume measurement.
Yes, up to 1,000,000 cSt.
±0.1% linearity.
Low maintenance with no moving parts in flow.
Yes, for direct system integration.
For more information about the Bopp & Reuther Oval Gear Flowmeter, pricing, or to request a demo, contact our team:
