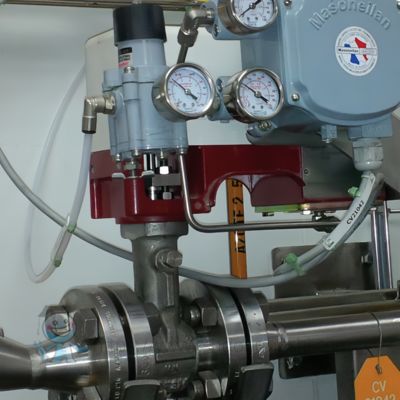

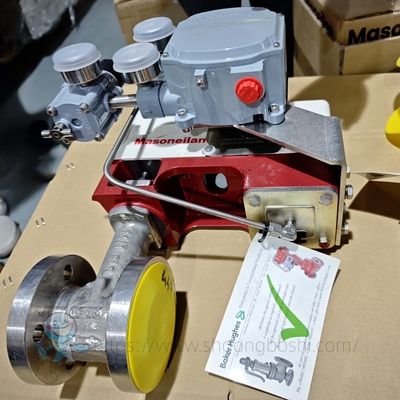

The Masoneilan 28000 Series Low-Flow Valve is a specialized solution for precise micro-flow control in demanding industrial processes. Engineered with multi-stage pressure reduction and a compact design, it handles low flow rates with exceptional accuracy and stability, minimizing leakage and ensuring tight shut-off. Ideal for laboratory, pilot plants, and analytical systems, the 28000 Series supports a wide range of media, from gases to corrosive liquids, with customizable trim options for optimal performance.
| Parameter | Specification |
|---|---|
| Valve Type | Single-seated, cage-guided |
| Size Range | 1/4" to 1" (DN6 to DN25) |
| Pressure Rating | ANSI Class 150 to 600 |
| Temperature Range | -54°C to 427°C (-65°F to 800°F) |
| Flow Capacity (Cv) | 0.00006 to 1.0 |
| Leakage Class | Class VI |
| Body Materials | Carbon steel, stainless steel, Hastelloy |
| Trim Materials | Stainless steel, 416 SS |
| End Connections | Screwed, flanged |
| Certifications | ASME B16.34, API 598, PED |
The Masoneilan 28000 Series Low-Flow Valve is tailored for micro-flow regulation in precision industries:
Up to 100:1 for wide flow range control.
Yes, with Hastelloy or Monel materials.
Inline repairable design allows servicing without removal.
Class VI for minimal leakage.
Yes, compatible with pneumatic or electric actuators.
For more information about the Masoneilan 28000 Series Low-Flow Valve, pricing, or to request a demo, contact our team:
