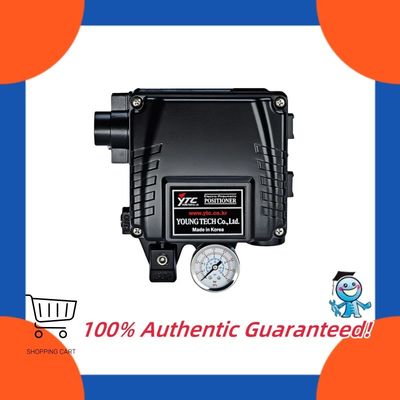

The Rotork YT-1000 Electro-Pneumatic Positioner is a durable, high-performance device for controlling pneumatic linear and rotary valve actuators in hazardous and vibrating environments. With no resonance between 5 to 200 Hz and a robust aluminum enclosure, it ensures stable operation in oil and gas, chemical, and mining applications. The A/M switch allows seamless manual/automatic mode transition, while simple zero-span adjustments facilitate quick calibration. Supporting full and split range settings, the YT-1000 provides reliable positioning with low air consumption, making it a cost-effective choice for demanding process control.
| Parameter | Specification |
|---|---|
| Input Signal | 4–20 mA |
| Air Supply Pressure | 1.4–7 bar (20–100 psi) |
| Stroke Range | Linear: 10–100 mm; Rotary: 90–120° |
| Linearity | ±1% of span |
| Hysteresis | ±0.5% of span |
| Repeatability | ±0.3% of span |
| Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Enclosure Rating | IP66 |
| Power Consumption | <1 W |
| Certifications | ATEX, FM, CSA |
The Rotork YT-1000 Positioner excels in durable valve control for industrial applications:
Its vibration-resistant design and robust enclosure ensure longevity in harsh settings.
Yes, the A/M switch allows easy manual mode for maintenance.
1.4–7 bar for efficient pneumatic control.
Yes, ATEX, FM, and CSA options available.
Simple zero-span adjustments with internal dials.
Contact our team for inquiries about the Rotork YT-1000 Valve Positioner, pricing, or to schedule a demo:
