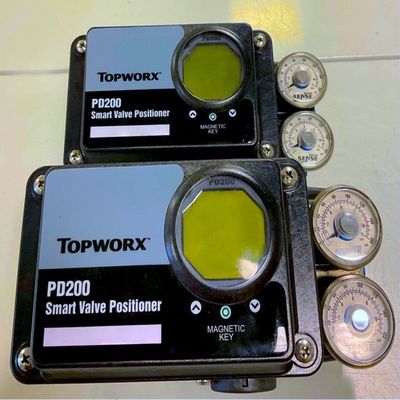

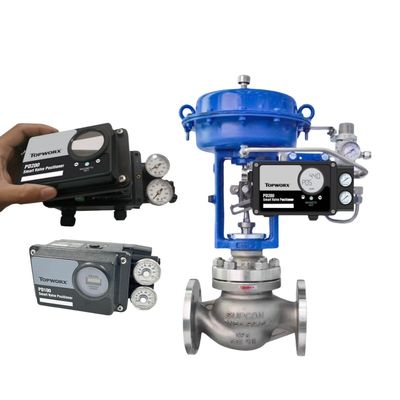

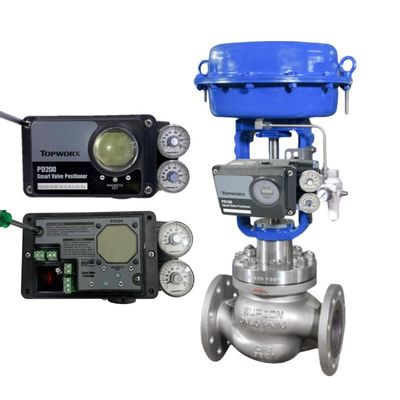

The TopWorx PD Series Smart Valve Positioner, featuring the PD100 and PD200 models, redefines valve automation with user-friendly operation and advanced diagnostic capabilities. Engineered with non-contacting Hall-effect sensors, these positioners ensure wear-free performance and precise valve positioning for both linear and rotary actuators. The PD100 delivers reliable 4-20 mA control, while the PD200 enhances functionality with HART communication for real-time diagnostics and predictive maintenance. With a robust IP66/Type 4X enclosure and certifications for hazardous areas (ATEX, IECEx, cULus), the PD Series is a versatile choice for oil and gas, chemical, and wastewater applications, streamlining operations and reducing downtime.
| Parameter | PD100 | PD200 |
|---|---|---|
| Communications Protocol | 4-20 mA (nominal) | HART Capable |
| Minimum Voltage | 8.5 VDC (analog control) | 8.5 VDC (analog), 9.0 VDC (HART) |
| Overvoltage | 36 VDC | 36 VDC |
| Voltage Drop | 12.2 VDC @ 4mA/24 VDC | 12.2 VDC @ 4mA/24 VDC |
| Input Impedance | 470 ohms @ 20mA/24 VDC | 470 ohms @ 20mA/24 VDC |
| Output Impedance (Feedback) | 800 ohms @ 20mA/24 VDC | 800 ohms @ 20mA/24 VDC |
| Actuator Signal | 0% to 100% of supply pressure | 0% to 100% of supply pressure |
| Response Time | ≥ 0.3% of Full Scale | ≥ 0.3% of Full Scale |
| Stroke Range | Linear: 12–200 mm; Rotary: 0–120° | Linear: 12–200 mm; Rotary: 0–120° |
| Hysteresis | 1.5% of Full Scale | 1.5% of Full Scale |
| Repeatability | 1.5% of Full Scale | 1.5% of Full Scale |
| Linearity | 0.8% of Full Scale | 0.8% of Full Scale |
| Temperature Range | -40°C to +65°C (-40°F to +149°F) | -40°C to +75°C (-40°F to +167°F) |
| Electrical Connection | 1/2" NPT female | 1/2" NPT female |
| Pneumatic Connection | 1/4" NPT female (Inlet & Outlet) | 1/4" NPT female (Inlet & Outlet) |
| Air-Supply Pressure | 2.8–8 bar (40–116 psi) | 2.8–8 bar (40–116 psi) |
| Output Air Consumption | 8.81 l/m @ 60 psi (0.31 scfm) | 8.81 l/m @ 60 psi (0.31 scfm) |
| Display Type | LCD, 4 numeric digits | LCD, 4.5 numeric digits, 6 alphanumeric digits |
| Local Controls | 3 mechanical buttons (Up, Down, Enter) | 3 mechanical & 3 magnetic buttons (includes magnetic key) |
| Certifications | cULus (General Purpose, Non-Incendive), ATEX/IECEx, CE | cULus (General Purpose, Intrinsically Safe), ATEX/IECEx, CE |
The TopWorx PD Series Smart Valve Positioner is designed for efficient valve automation across diverse industries:
The PD200’s HART protocol and configurable PNP alarms provide real-time valve health data to prevent failures.

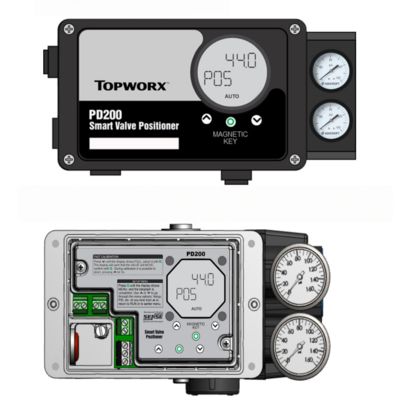

Its LCD interface and push-button/magnetic key controls enable easy calibration and monitoring without cover removal.
Yes, with an IP66/Type 4X enclosure and a temperature range down to -40°C, it’s built for harsh conditions.
Hall-effect sensors eliminate mechanical wear, ensuring long-term reliability and reduced maintenance.
Auto-calibration via push-button or magnetic key allows setup in minutes, streamlining installation.
For more information about the TopWorx PD Series Smart Valve Positioner, pricing, or to request a demo, contact our team:
