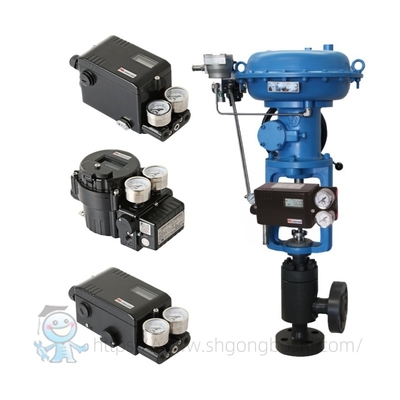

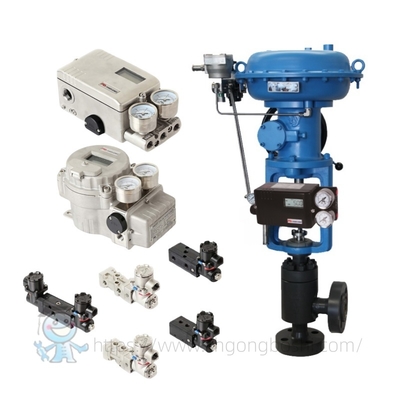

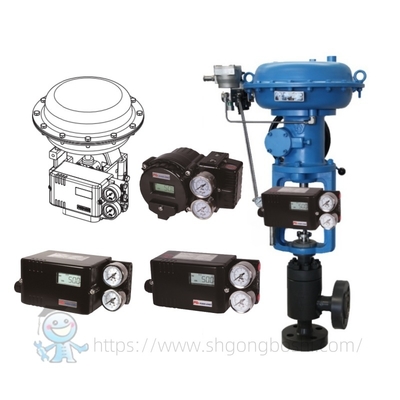

The Power-Genex SS2 Smart Valve Positioner is a robust and intelligent solution for valve automation in challenging industrial settings. Engineered for both linear and rotary valves, it features piezo technology for precise control and advanced diagnostic capabilities via HART, Profibus PA, or Fieldbus Foundation protocols. Its IP66-rated, ATEX-certified design ensures reliable operation in harsh and hazardous environments, while the low air consumption and durable construction minimize maintenance costs. Ideal for industries like petrochemicals, power generation, and food processing, the SS2 delivers long-lasting performance and operational efficiency.
| Parameter | Specification |
|---|---|
| Input Signal | 4-20 mA (HART, Profibus PA, Fieldbus Foundation optional) |
| Air Supply Pressure | 1.4–7 bar (20–101.5 psi) |
| Stroke Range | Linear: 5–130 mm; Rotary: 25–120° |
| Operating Temperature | -40°C to +80°C |
| Protection Rating | IP66 |
| Certifications | ATEX, Intrinsically Safe Ex ia IIC T6/T5 |
| Weight | 1.6 kg (3.53 lbs) |
| Material | Aluminum (SS316 optional for SS2S/SS2SL/SS2SR) |
| Output Signal | 4-20 mA feedback (optional) |
| Mounting Standards | IEC 60534-6-1 (linear), VDI/VDE 3845 (rotary) |
The Power-Genex SS2 excels in demanding valve control applications across various industries:
Its IP66-rated and ATEX-certified design ensures durability in extreme temperatures and hazardous areas.

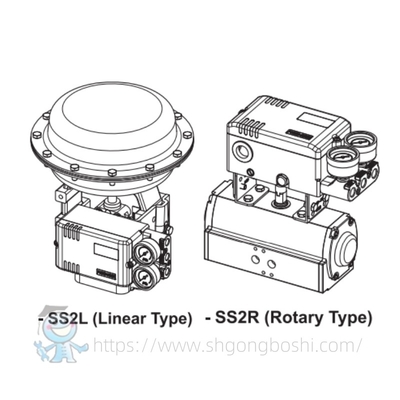

Yes, it supports linear valves (5–130 mm stroke) and rotary valves (25–120°).
It offers error messaging and performance monitoring through HART or fieldbus protocols.
It meets IEC 60534-6-1 for linear valves and VDI/VDE 3845 for rotary valves.
Yes, an auto/manual by-pass screw allows manual control without disrupting automation.
For more information about the Power-Genex SS2 Smart Valve Positioner, pricing, or to request a demo, contact our team:
