| Attribute | Value |
|---|---|
| Data Interface | Wired |
| Diagnostics | Yes |
| Mounting Type | Integral Mounted |
| Supply Media | Air, Non Corrosive Gas |
| Input Signal | Electric |
| Max Outlet Pressure | 101 psig |
| Communication Protocol | HART, 4-20mA Analog |

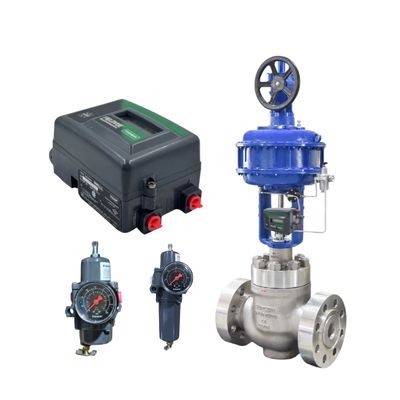

The Fisher 67C Series (67CFR/67DFR) Filter Regulators and DVC2000 Digital Valve Controller form an integrated pneumatic control system designed for precise valve automation. The 67CFR/67DFR regulators ensure clean, stable air supply by combining filtration and pressure adjustment, while the DVC2000 provides adaptive digital control for actuators. Together, they enhance process reliability, reduce maintenance, and optimize energy efficiency in demanding industrial environments.
| Product | Parameter | Specification |
|---|---|---|
| 67CFR/67DFR | Regulation Range | 0.5-10 bar / 7-145 psi |
| Flow Capacity | 1500 L/min (67CFR) / 3000 L/min (67DFR) | |
| Filtration Rating | 5 µm (Standard) / 40 µm (Coarse) | |
| Pressure Port | 1/4" NPT / G1/4" | |
| Material | Aluminum (Anodized) / Stainless Steel | |
| Protection Class | IP65 | |
| Operating Temp | -20°C to +80°C (-4°F to +176°F) | |
| DVC2000 | Input Signal | 4-20mA + HART 7 |
| Control Type | Pneumatic (Direct/Reverse Action) | |
| Accuracy | ±1% Full Scale | |
| Output Pressure | 0.2-6 bar / 3-90 psi | |
| Communication | HART 7, FOUNDATION Fieldbus (Optional) | |
| Protection Class | IP66 | |
| Operating Temp | -40°C to +85°C (-40°F to +185°F) |
