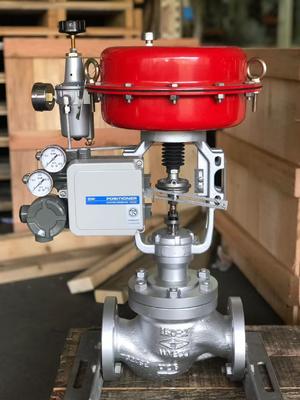

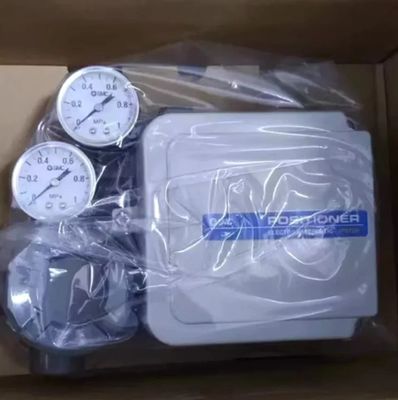

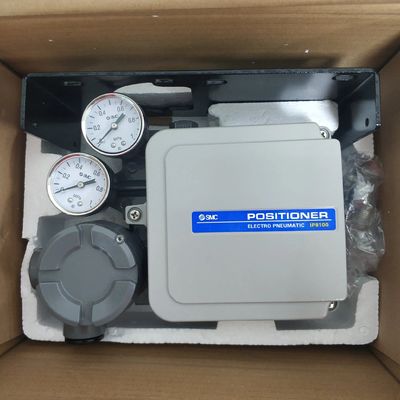

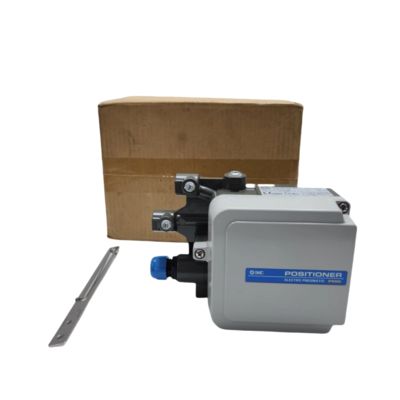

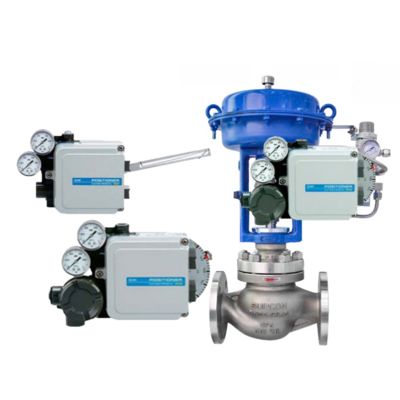

The SMC IP8000 is a compact, high-performance electro-pneumatic valve positioner designed for use with pneumatic actuators in process automation systems. It converts electrical signals (typically 4-20 mA) into proportional pneumatic output, providing accurate and stable valve control. The IP8000 supports both linear and rotary valve actuators, making it a flexible solution for a wide range of industries.
| Parameter | Specification |
|---|---|
| Input Signal | 4-20 mA DC |
| Input Impedance | Approx. 250 Ω (at 20 mA) |
| Supply Pressure | 0.14 to 0.7 MPa (20-102 psi) |
| Output Pressure Range | 0 to 100% of supply pressure |
| Linearity | Within ±1% FS |
| Hysteresis | Within ±0.5% FS |
| Air Consumption | Approx. 4 L/min (ANR) |
| Operating Temperature | -20°C to +70°C |
| Protection Class | IP65 (depending on model) |
| Mounting | Direct or bracket mount (NAMUR compatible) |
| Explosion Proof Options | Available upon request (Ex models) |
Whether used for modulating control valves, on/off pneumatic actuators, or precision flow systems, the SMC IP8000 enhances valve performance with fast response and tight control.
