Pneumatic Control Valve Original4-20mA Fishers 3582 3582 Positioner Emerson 3582 with 67CFR Filter Regulator Asco Solenoid Valve

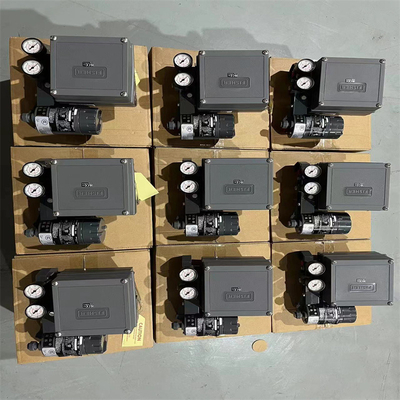

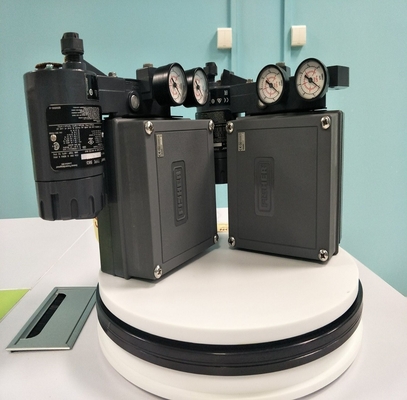

 Fisher 3582i Single-Acting Pneumatic Positioner

Fisher 3582 pneumatic valve positioners are used with diaphragm-actuated, sliding-stem control valve assemblies. This pneumatic valve positioner receives a pneumatic input signal from a control device and modulates the supply pressure to the control valve actuator, providing an accurate valve stem position that is proportional to the pneumatic input signal.

Specifications

Area Classification: ATEX Group II Category 2 Gas and Dust, CUTR for Groups II/III Category 2 Equipment
Certifications: ATEX, CUTR, PED
Communication Protocol: 3-15 or 6-30 psi, 0.2 -1.0 or 0.4 -2.0 bar Pneumatic Signal
Diagnostics: No
Input Signal: Pneumatic
Max Outlet Pressure: 50 psi
Mounting Type: Actuator Mounted
Operating Temperature: Standard Temperature, High Temperature
Position Control: Modulating
Safety Certification: NIL
Supply Media Air, Natural Gas
Other Configurations Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product.

Features

• The range of the adjustable zero and span permits the use of all standard input signals, including split ranges.
• Because units from one positioner family can be used in a variety of control applications, basic spare parts inventory requirements are simplified and fewer spare parts are needed to support a plant-wide positioner applications base.
• With the cover removed, zero and span adjustments are easily accessible and can be made with a screw driver and spanner.
• Changes in supply pressure and valve load have minimal effect on positioner operation.
• Case, components, and gasket materials are able to withstand harsh environments. Positioner bleed air purges internal parts for additional protection..
• Simple adjustments permit switching between direct and reverse action.
• To support diagnostic testing of valve/actuator/positioner packages with the FlowScanner™ valve diagnostic system, connectors, piping, and other hardware can be installed between the positioner and the actuator.

Input Signal

3582:

0.2 to 1.0 bar (3 to 15 psig), 0.4 to 2.0 bar (6 to 30 psig)

3582i:

4 to 20 mA DC constant current with 30 VDC maximum compliance voltage

Approximate Weight

3582: 2.5 kg (5.5 pounds)

3582i: 3.6 kg (8 pounds)
