3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots

$6,500.00/Sets 1-9 Sets
가격
3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
적용 가능한 산업: 재료사, 기계 정비소, 제조 공장, 음식 & 음료 공장, 농장, 식당, 가정용, 소매점, 식품 판매점, 인쇄소, 건설 작업, 에너지 & 마이닝, 식료품 상점, 다르, 광고를 구축하
전시실 위치: 이집트, 캐나다, 터키, 영국, 미국, 이탈리아, 프랑스, 독일, 브라질, 멕시코, 스페인, 태국, 콜롬비아
화면 출하검사: 제공됩니다
기계류 테스트 리포트: 제공됩니다
마케팅 타입: 신제품 2020년
핵심 구성 요소의 보증: 1년이요
핵심 구성 요소: PLC, 엔진
상태: 새롭습니다
중량: 4.8 킬로그램
보증: 1년이요
(KG에) 짓누르세요: 4.8 킬로그램
브랜드: 히트보트
모델: z-암 1522년
맥스 화물: 0.5 킬로그램
팔 한계: 220 밀리미터
반복성: ±0.1mm
Z축 한계: 150 밀리미터
주축의 수: 3
전압: 220V/110V 50-60HZ DC 24V
통신: 이더넷
발자국: 160*160*45mm
공항: 상하이
기본 정보
원래 장소: 중국
브랜드 이름: Hitbot
결제 및 배송 조건
포장 세부 사항: 협력적 로봇으로서의 레이저 조각반을 위한 3 주축 로봇 팔 히트보트 z-암 1522 코봇이 훈증 목재 프레임, WG로 포장됩니다 :1705KG<br>Controller와 다른 부분
공급 능력: 5개 부분 / 부분마다 달
제품 설명
Product Description

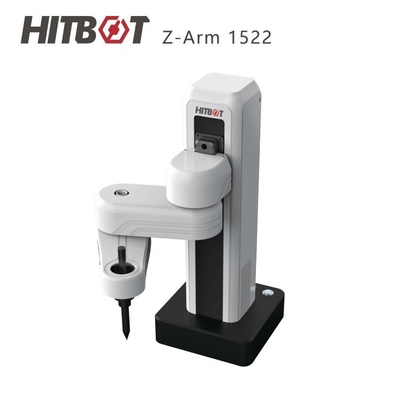

3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 0

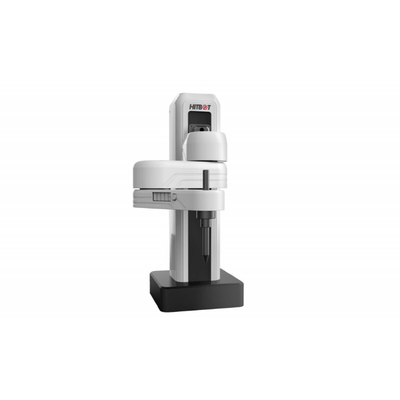

3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 1

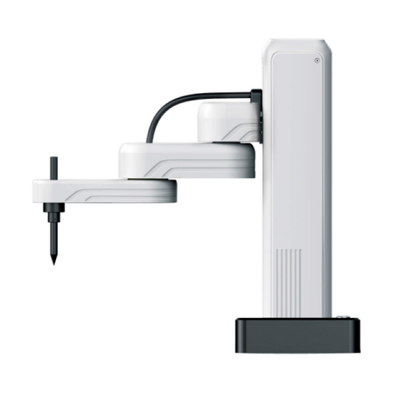

3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 2

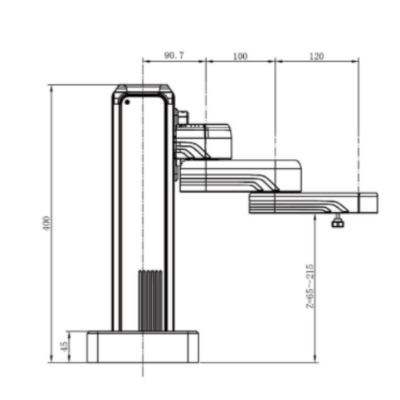

3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 3

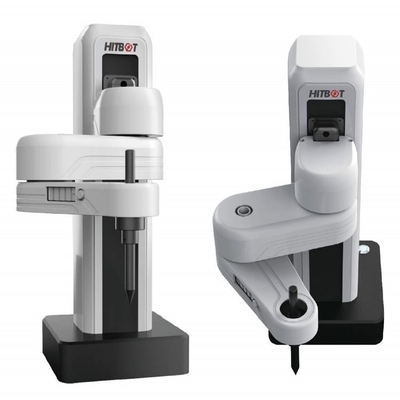

3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 4

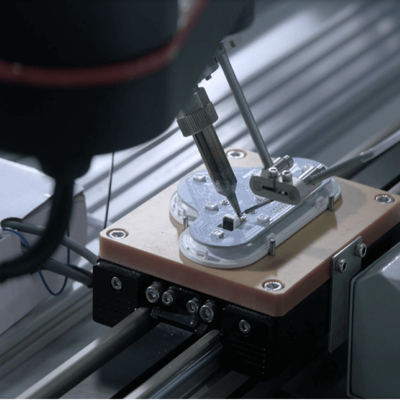

3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 5
Specification
item
value
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Showroom Location
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Brazil, Mexico, Spain, Thailand, Colombia
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
New Product 2020
Warranty of core components
1 Year
Core Components
PLC, Engine
Condition
New
Place of Origin
China
Brand Name
Hitbot
Weight
4.8kg
Warranty
1 Year
Weight (KG)
4.8kg
Brand
Hitbot
Model
Z-arm 1522
Max Payload
0.5Kg
Arm Reach
220mm
Repeatability
±0.1mm
Z-axis Reach
150mm
Number of axis
3
Voltage
220V/110V 50-60HZ DC 24V
Communication
Ethernet
Footprint
160*160*45mm
Packing & Delivery
3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots packing with fumigation wooden frame, WG:1705KG Controller and other parts packing with brown box, WG:75KG Total WG:1780KG(>VG)
Company Profile
3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 6
3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 7
3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 8
3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 9
3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 10
3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 11
Xiangjing(Shanghai) Mechnical Electrical Tech. Co., Ltd is is the subcompany of Dr. Industry Group Co., Ltd, was founded in January 2015, We focus on discrete industrial automation and process industrial automation, and we can design, develop, install, testing, debug industrial robot, its units and related accessories including fixture, transmission device, positioning device and control system, we can provide Welding Robot, Spray Painting Robot, Transfer Robot, and Grinding Robot, we have many reference in automation industry in China. Meanwhile we are agent of KUKA , ABB, Yaskawa industrial robots, and distributor of FUNC industrial robot. we are the important partner of them in the China market, we have more than 7 engineers with rich expericence, who had been worked for ABB or KUKA more than 10 years. meanwhile Dr. Industry Group can provide ABB and KUKA robot training for our customer, there are weeekly training courses. In the process of industrial automation field, Xiangjing can provide control valve, actuator, postioner, and regulator, Xiangjing is the improtant partner of Emerson process management in the China market, we are fisher and rosemount project authorized agent in China, we can provide fisher control valve, fisher regulator, rosemount pressure, level, thermal transimtter, rosemount wireless instrument, Daniel Flowmeter, ASCO Solenoid Valve, TopWorx Switch and so on. We have many references on power, chemical industry in China. Xiangjing has two teams, one is for discrete industrial automation and the other is for process industrial automation with rich experience, we are good partner of you.
FAQ
1. who are we?
We are based in Shanghai, China, start from 2015,sell to South America(40.00%),Southeast Asia(30.00%),Eastern Europe(20.00%),Western Europe(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Robot/ Robot Positioner/ Robot Track/ Robot Gripper/ Robot Control System

4. why should you buy from us not from other suppliers?
1: We are with ABB,KUKA,FANUC,YASKAWA agentand many other brands agent for years. 2: Majority of our engineer from KUKA, ABB. The engineering manager worked in ABB company for 19 years. 3: We can offer majority of industrial controlled component.

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Western Union;
Language Spoken:English,Chinese
3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 12
3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 13
3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 14

Product Features

1.Multiple Models This series of robots can be used in small parts assembly, dispensing, machine tending, material handling, electronics and many other applications in general industrial fields. 2.Reliable Performance It can adapt to harsh working environment, and can also be equipped with integrated joints which are easy to disassemble and transport. 3.Easy to Maintain Considering that improving maintainability is a key factor to reduce costs, the robot's after-sales and maintenance time is reduced by 15%. 4.Technical Support We will provide you with long-term technical services. If you have any technical problems or other needs during using our robot, you are welcome to contact us.
3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 15
3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 16
3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 17
