KR 360 R2830 cnc welding robot with welding gun cleaner and robot 6 axis for KUKA industrial robot arm

기본 정보
원래 장소: 중국
브랜드 이름: KUKA
가격: $50,000.00/Sets 1-9 Sets
공급 능력: 50개 세트 / 세트마다 달
상태: 새롭습니다 타입: 미그 용접공들
화면 출하검사: 제공됩니다 기계류 테스트 리포트: 제공됩니다
마케팅 타입: 보편적 제품 핵심 구성 요소의 보증: 1년이요
핵심 구성 요소: PLC, 엔진, 모터, 압력 용기 전동기형: 교류 전동기
차원: 1050 밀리미터 X 1050 밀리미터 용법: 용접
전압: 380V 힘: 220
(KG에) 짓누르세요: 2385 KG 보증: 1년이요
핵심 판매 요소: 긴 서비스 라이프 적용 가능한 산업: 재료사, 다른, 광고 회사를 만든 의복 판매점
전시실 위치: 아무것도 상품 이름: 로봇드 로봇과 로봇을 용접하는 KR 360 R2830 CNC (컴퓨터에 의한 수치제어)
모델: KR 360 R2830 반복성을 제기하세요: ± 0.08 밀리미터
감원의 수: 6 장착 위치: 바닥
발자국: 1050 밀리미터 X 1050 밀리미터 중량: 대략. 2385 킬로그램
보호 등급: IP65 제어기: KR C4 계약
교시펜던트: KUKA 스마트패드

KR 360 R2830 cnc welding robot with welding gun cleaner and robot 6 axis for KUKA  industrial robot arm

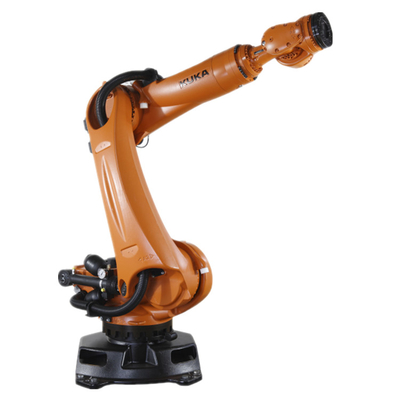

Product image

 KR 360 R2830 cnc welding robot with welding gun cleaner and robot 6 axis for KUKA  industrial robot arm 0KR 360 R2830 cnc welding robot with welding gun cleaner and robot 6 axis for KUKA  industrial robot arm 1KR 360 R2830 cnc welding robot with welding gun cleaner and robot 6 axis for KUKA  industrial robot arm 2KR 360 R2830 cnc welding robot with welding gun cleaner and robot 6 axis for KUKA  industrial robot arm 3

Product Description



Specification
Product name  KR 360 R2830 cnc welding robot with welding gun cleaner and robot 6 axis for KUKA  industrial robot arm
Model KR 360 R2830
Maximum reach 2826 mm
Maximum payload 472 kg
Pose repeatability (ISO 9283) ± 0.08 mm
Number of axes 6
Mounting position Floor
Footprint 1050 mm x 1050 mm
Weight approx. 2385 kg
Protection rating IP65
Controller  KR C4 compact
Teach pendant  KUKA smartPAD

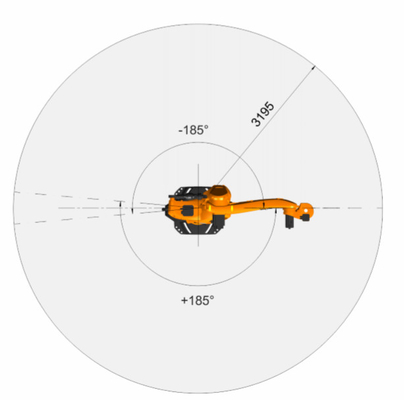

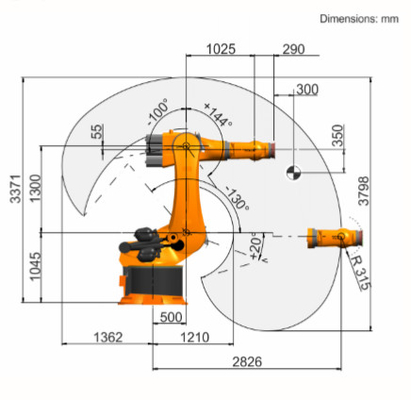

Motion range
A1 ±185°
A2 (-130° / 20°)
A3 (100°- 144°)
A4 ±350°
A5 ±125°
A6 ±350°
