50KG 화물 2220MM과 4명의 이스스 로보틱 아암 조종자는 팔레타이징 로봇과 핸들링 로봇에 도달합니다

1
MOQ
32200
가격
50KG 화물 2220MM과 4명의 이스스 로보틱 아암 조종자는 팔레타이징 로봇과 핸들링 로봇에 도달합니다
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
타입: SF50-K2220
유효 탑재량: 50KG
한계: 2220mm
반복성: 0.2mm
방법을 모십시오: AC 서보 모터에 의해 가동됩니다
중량: 616KG
중심선: 4
보호 수준: IP65
유치법: 지상 임명
일 환경 온도: 0-45°C
강조하다:

분무 6 주축 조종자를 페인트를 칠하기

,

협력적 용접 주축 조종자 6명

,

코봇 6 주축 조종자

기본 정보
원래 장소: 중국
브랜드 이름: Chaifu
모델 번호: SF50-K2220
결제 및 배송 조건
포장 세부 사항: 4명의 50KG 화물 2220MM 한계 팰릿으로 운반 로봇과 핸들링 로봇과 이스스 로보틱 아암 조종자가 훈증 목재 프레임, WG로 포장됩니다 : 1120 KG 제어기와 다른 부분이
배달 시간: 4-8 주
지불 조건: L/C (신용장), 전신환
공급 능력: 달 당 10개 세트
제품 설명

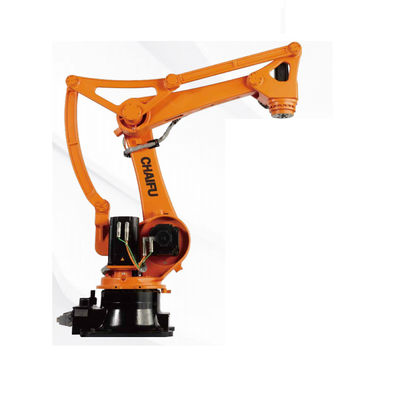

4 Aixs Robotic Arm Manipulator With 50KG Payload 2220MM Reach Palletizing Robot And Handling Robot

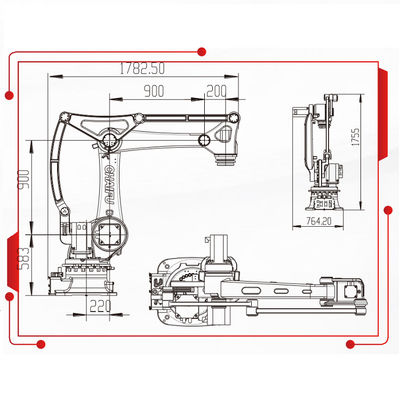

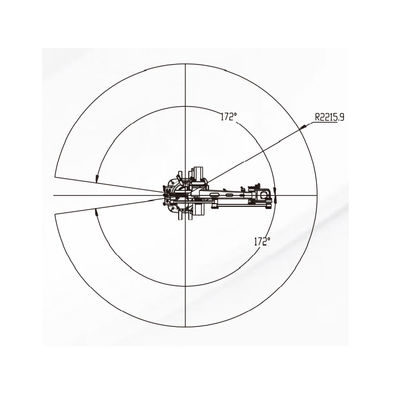

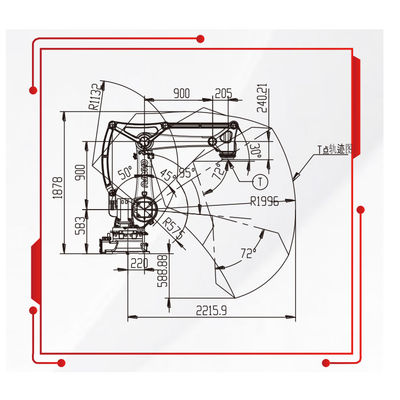

Specification


item

value

Applicable Industries

Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company

After Warranty Service

Video technical support, Online support

Local Service Location

Canada, United Kingdom, United States, Italy, France, Germany, India, Russia, Thailand, Japan, Australia, South Korea

Showroom Location

Canada, United Kingdom, United States, Italy, France, Germany, Philippines, India, Mexico, Russia, Japan, Australia

Video outgoing-inspection

Provided

Machinery Test Report

Provided

Marketing Type

Hot Product 2019

Warranty of core components

1 Year

Core Components

PLC

Condition

New

Place of Origin

China

Brand Name

Chaifu

Warranty

1 Year



Online support

Type

SF50-K2220

Payload

50KG

Reach

2220MM

Repeatability

0.2MM

Weight

616KG

Drive method

Driven by AC servo motor

Axis

4

Protection Level

IP65

Leaving method

Ground installation

Work environment temperature

0-45°C


Packing & Delivery


50KG 화물 2220MM과 4명의 이스스 로보틱 아암 조종자는 팔레타이징 로봇과 핸들링 로봇에 도달합니다 0

50KG 화물 2220MM과 4명의 이스스 로보틱 아암 조종자는 팔레타이징 로봇과 핸들링 로봇에 도달합니다 1

4 Aixs Robotic Arm Manipulator With 50KG Payload 2220MM Reach Palletizing Robot And Handling Robot packing with fumigation wooden frame, WG:1705KG Controller and other parts packing with brown box, WG:75KG Total WG:1780KG(>VG)

Company Profile

50KG 화물 2220MM과 4명의 이스스 로보틱 아암 조종자는 팔레타이징 로봇과 핸들링 로봇에 도달합니다 2

50KG 화물 2220MM과 4명의 이스스 로보틱 아암 조종자는 팔레타이징 로봇과 핸들링 로봇에 도달합니다 3

50KG 화물 2220MM과 4명의 이스스 로보틱 아암 조종자는 팔레타이징 로봇과 핸들링 로봇에 도달합니다 4


50KG 화물 2220MM과 4명의 이스스 로보틱 아암 조종자는 팔레타이징 로봇과 핸들링 로봇에 도달합니다 5

50KG 화물 2220MM과 4명의 이스스 로보틱 아암 조종자는 팔레타이징 로봇과 핸들링 로봇에 도달합니다 6

50KG 화물 2220MM과 4명의 이스스 로보틱 아암 조종자는 팔레타이징 로봇과 핸들링 로봇에 도달합니다 7

Xiangjing(Shanghai) Mechnical Electrical Tech. Co., Ltd is is the subcompany of Dr. Industry Group Co., Ltd, was founded in January 2015, We focus on discrete industrial automation and process industrial automation, and we can design, develop, install, testing, debug industrial robot, its units and related accessories including fixture, transmission device, positioning device and control system, we can provide Welding Robot, Spray Painting Robot, Transfer Robot, and Grinding Robot, we have many reference in automation industry in China. Meanwhile we are agent of KUKA , ABB, Yaskawa industrial robots, and distributor of FUNC industrial robot. we are the important partner of them in the China market, we have more than 7 engineers with rich expericence, who had been worked for ABB or KUKA more than 10 years. meanwhile Dr. Industry Group can provide ABB and KUKA robot training for our customer, there are weeekly training courses. In the process of industrial automation field, Xiangjing can provide control valve, actuator, postioner, and regulator, Xiangjing is the improtant partner of Emerson process management in the China market, we are fisher and rosemount project authorized agent in China, we can provide fisher control valve, fisher regulator, rosemount pressure, level, thermal transimtter, rosemount wireless instrument, Daniel Flowmeter, ASCO Solenoid Valve, TopWorx Switch and so on. We have many references on power, chemical industry in China. Xiangjing has two teams, one is for discrete industrial automation and the other is for process industrial automation with rich experience, we are good partner of you.

FAQ

1. who are we?
We are based in Shanghai, China, start from 2015,sell to South America(40.00%),Southeast Asia(30.00%),Eastern Europe(20.00%),Western Europe(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Robot,Control Valve

4. why should you buy from us not from other suppliers?
1: We are with ABB,KUKA,FANUC,YASKAWA agentand many other brands agent for years. 2: Majority of our engineer from KUKA, ABB. The engineering manager worked in ABB company for 19 years. 3: We can offer majority of industrial controlled component.

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Western Union;
Language Spoken:English,Chinese


50KG 화물 2220MM과 4명의 이스스 로보틱 아암 조종자는 팔레타이징 로봇과 핸들링 로봇에 도달합니다 9


50KG 화물 2220MM과 4명의 이스스 로보틱 아암 조종자는 팔레타이징 로봇과 핸들링 로봇에 도달합니다 10


50KG 화물 2220MM과 4명의 이스스 로보틱 아암 조종자는 팔레타이징 로봇과 핸들링 로봇에 도달합니다 11


Production Name

Industry Robot

Power supply

20 ~ 25V

Protection rating

IP54

Weight

1.25kg





FAQ

Q.How Long will You Need before Delivery? A:We have many common models in stock, so that wecan deliver the goods very soon(less than 3 days).

Q.What is Your Payment Term?
A:Normally T/T 30% in advance, balance to be paidbefore delivery, We also support the trade assurance,OlA.
Q:What is Trade Assurance? A:Trade Assurance is a free service by Alibaba.comthat's designed to help create trust between buyers andsuppliers.Trade Assurance helps buyers in the event ofshipping and quality-related dispute.
Q:Does Trade Assurance Charge Fees? A:No.Trade Assurance is free for both buyers andsuppliers.
Q:What Kind of Trade Terms Can You Do?
A:EX-WORKS,FOB,CFR,CIF,etc.

50KG 화물 2220MM과 4명의 이스스 로보틱 아암 조종자는 팔레타이징 로봇과 핸들링 로봇에 도달합니다 12
50KG 화물 2220MM과 4명의 이스스 로보틱 아암 조종자는 팔레타이징 로봇과 핸들링 로봇에 도달합니다 13
50KG 화물 2220MM과 4명의 이스스 로보틱 아암 조종자는 팔레타이징 로봇과 핸들링 로봇에 도달합니다 14
50KG 화물 2220MM과 4명의 이스스 로보틱 아암 조종자는 팔레타이징 로봇과 핸들링 로봇에 도달합니다 15


50KG 화물 2220MM과 4명의 이스스 로보틱 아암 조종자는 팔레타이징 로봇과 핸들링 로봇에 도달합니다 16
