상품 이름:삼손 종류 4708 조정 밸브는 공기 측정에 일정한 공급 압력 조정기를 제공합니다
설정 포인트 범위:0.2 1.6개 바 (3 내지 24 psi) 또는 0.5 내지 6 바 (8 내지 90 psi)에
7 바 공급 압력에 있는 공기소비량:≤0.05 mn3/h
흡입구 압력에 대한 의존성:< 0="">
반대 에러:0.1 (설정 포인트에 따라서) 0.4개 바에
히스테리시스:< 0="">
필터 캐트리지 메쉬 크기:20 um 마음대로 5 um
지시 범위:0 내지 1.6 바 (0 내지 24 psi) 또는 0 내지 6 바 (0 내지 90 psi)
연결:Ｇ 1/8
보호도:IP65
강조하다:
IP65 Pneumatic Actuator
,
G 1/8 Connected Pneumatic Actuator
,
Type 4708 Pneumatic Actuator
기본 정보
원래 장소:중국
브랜드 이름:Samson
인증:CE
모델 번호:4708
결제 및 배송 조건
배달 시간:2 달
지불 조건:L/C (신용장), 전신환
공급 능력:999
갤러리

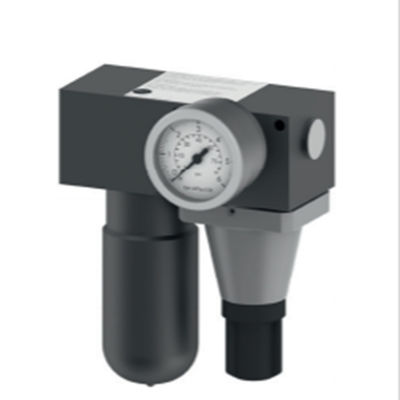

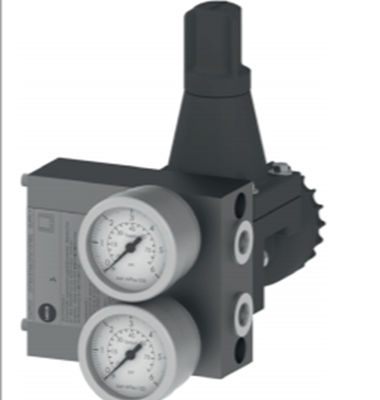

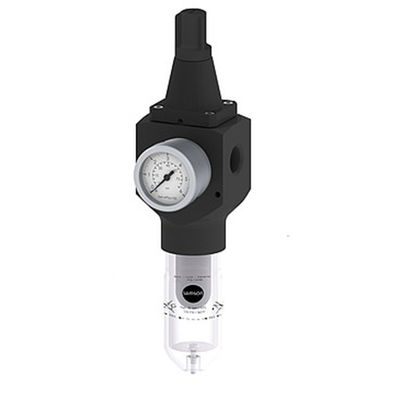

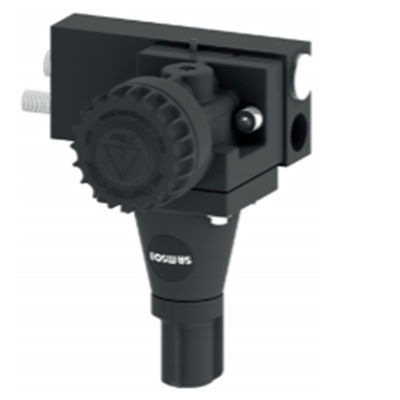

Samson Pressure Regulator Type 4708 Provide Pneumatic Measuring
제품 설명
Product Description
Specification
item
value
Warranty
1 years
Place of Origin
China
Shanghai
Brand Name
Samson
Model Number
Type 4708
Supply pressure
1.6 to 12 bar (24 to 180 psi)
Set point range
0.2 to 1.6 bar (3 to 24 psi) or 0.5 to 6 bar (8 to 90 psi)
Air consumption at 7 bar supply pressure
≤0.05 mn³/h
Dependency on inlet pressure
< 0.01 bar = 1 bar
Reversing error
0.1 to 0.4 bar (depending on set point)
Hysteresis
< 0.1 bar
Filter cartridge mesh size
20um Optionally 5 um
Indicating range
0 to 1.6 bar (0 to 24 psi) or 0 to 6 bar (0 to 90 psi)
Connection
G 1/8
Degree of protection
IP 65
Packing & Delivery
Samson type 4708 regulator valve provide pneumatic measuring with a constant supply pressure regulator packed with one fumigation wooden box
