응용 프로그램: | 용접, 가는 회화 | 보증: | 일년 |
---|---|---|---|
판매 후 서비스 제공: | 엔지니어 서비스 기계 해외 수 | 전압: | 100-240VAC |
용법: | 집합을 위해, 픽업, 용접, 그리는 갈기 | 유형: | E10 |
탑재량: | 10kg | 무게: | 40KG |
도달: | 1천밀리미터 | 반복성: | ± 0.05mm |
포트: | 상하이 항 | ||
하이 라이트: | universal collaborative robot,multi axis robotic arm |

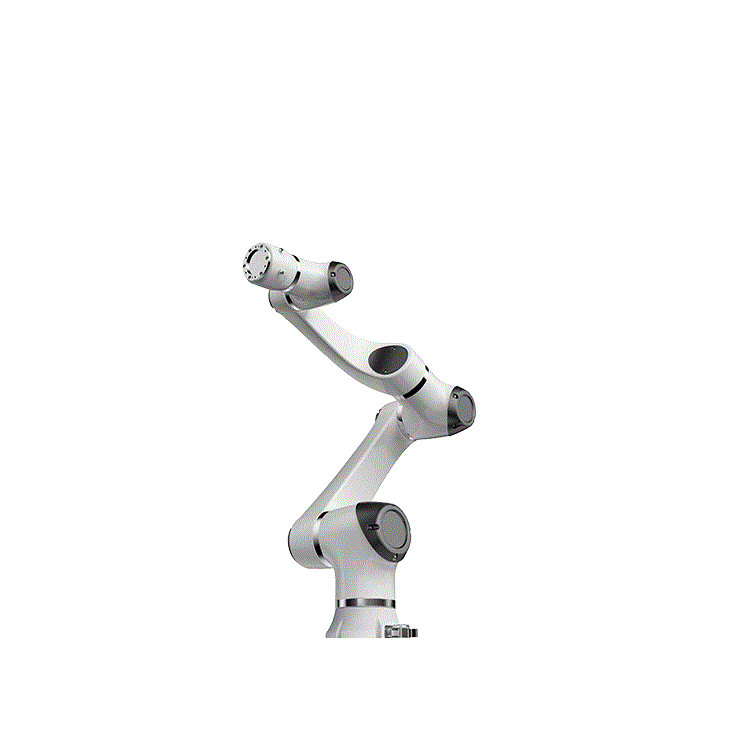

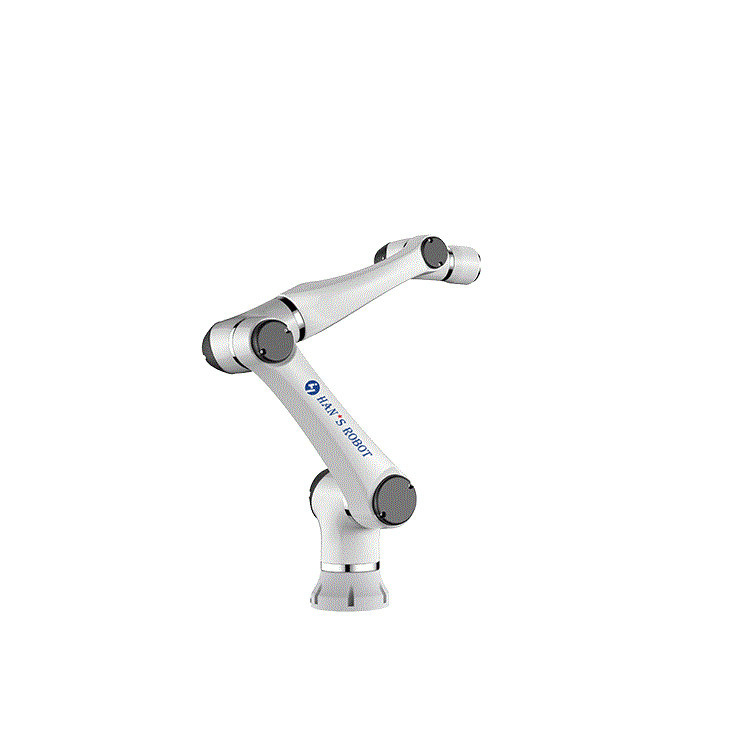

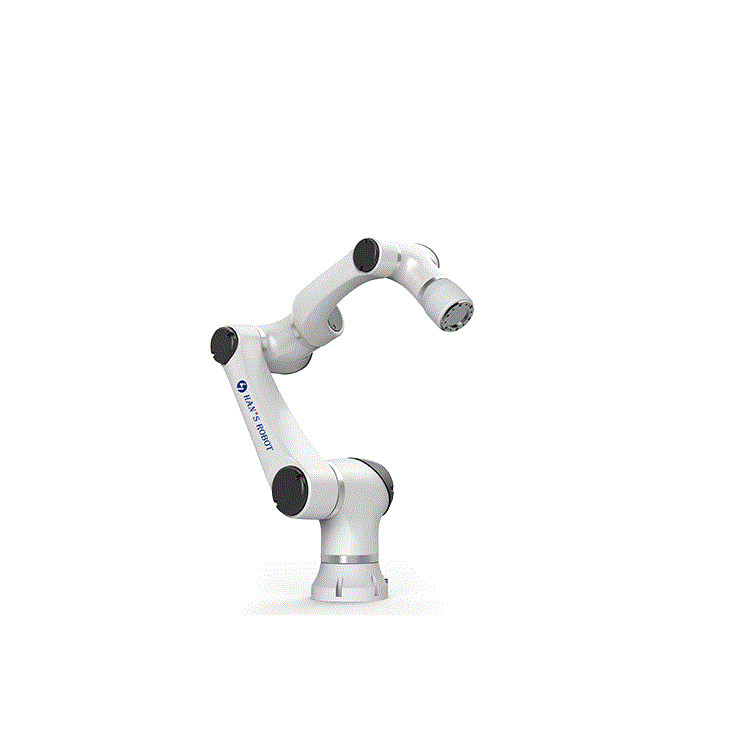

E10 Collaborative Grinding Robot for Industry
Introduction
5kg in rated load with 23kg in weight
Modularity: All-in-one module of reducer, motor, encoder and drive
High accuracy: Repeatability up to ±0.05mm
Type | E10 | Tool Speed | 1 m/s | Programming | graphical programming, remote process call |
Weight | 40kg | Repeatability | ±0.05(in normal condition) | IP Class | IP54 |
Payload | 10kg | Degree of Freedom | 6 | Cooperative Operation | 10 advanced configurations for safety |
Reach | 1000mm | Control Box Size | 400*366*263mm | Main Material | aluminum alloy |
Power | 350w in typical cycle | I/O Port | digital input/output:4, analog input:2 | Working Temperature | 0-50º |
Joint Range | ±360º | I/O Source | 24V 2A | Power Input | 100-240VAC,50-60Hz |
Joint Speed | 90º/s | Communication | TCP/IP | Cable | cable to connect the control box:5m, cable to connect teach pendant:5m |
