Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine

기본 정보
원래 장소: 상하이, 중국
브랜드 이름: KUKA
가격: $44,915.00/Sets >=1 Sets
포장 세부 사항: 20 킬로그램 용접기의 용접 정격유효부하를 위한 6 주축 로봇 팔과 것 산업용 로봇 KR 20 R1810이 훈증 목재 프레임, WG로 포장됩니다 :250KG
공급 능력: 달 당 999 조각/조각
상태: 새롭습니다 타입: 미그 용접공들
화면 출하검사: 제공됩니다 기계류 테스트 리포트: 제공됩니다
마케팅 타입: 신제품 2020년 핵심 구성 요소의 보증: 1년이요
핵심 구성 요소: PLC, 모터 전동기형: 교류 전동기
차원: 선택적입니다 용법: 용접
전압: 220 (KG에) 짓누르세요: 250 KG
보증: 1년이요 핵심 판매 요소: 경쟁력있는 가격
적용 가능한 산업: 재료사, 기계 정비소, 제조 공장, 음식 & 음료 공장, 농장, 식당, 가정용, 소매점, 식품 판매점, 인쇄소, 건설 작업, 에너지 & 마이닝, 식료품 상점, 다르, 광고를 구축하 전시실 위치: 이집트, 이탈리아, 스페인, UAE, 타지키스탄, 일본
최대 범위: 1813 밀리미터 최대 적재 중량: 23.9 킬로그램
정격유효부하: 20 킬로그램 포즈 반복성 (ISO 9283): ± 0.04 밀리미터
감원의 수: 6 발자국: 430.5 밀리미터 X 370 밀리미터
중량: 대략. 250 킬로그램 작동 동안 대기 온도: 5 'C 내지 45 'C (318 K에 대한 278 K)
제어기: KR C4 교시펜던트: KUKA 스마트패드
공항: 상하이

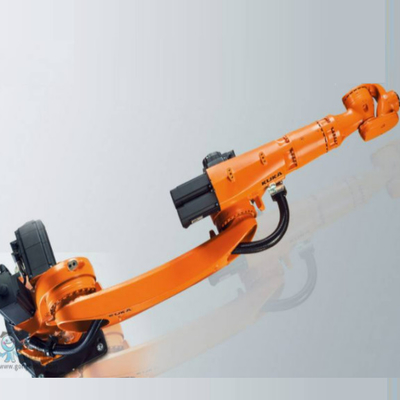

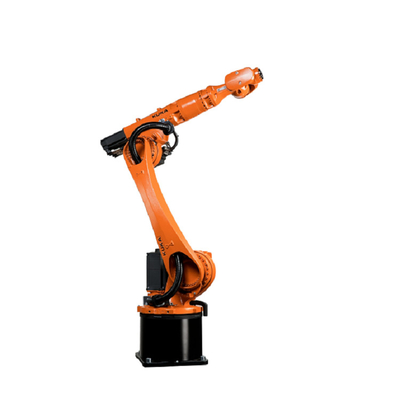

Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine

The Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine is designed for a rated payload of 20 kg in order to optimize the dynamic performance of the robot. With reduced load center distances, higher loads up to the maximum payload may be used. The specific load case must be verified using KUKA.Load.
Product Description
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 0
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 1
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 2
Specification
item
value
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
Name
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
New Product 2020
Warranty of core components
1 Year
Core Components
PLC
Condition
New
Place of Origin
China
Shanghai
Brand Name
KUKA
Weight
250kg
Power
380v
Warranty
1 Year
Weight (KG)
250kg

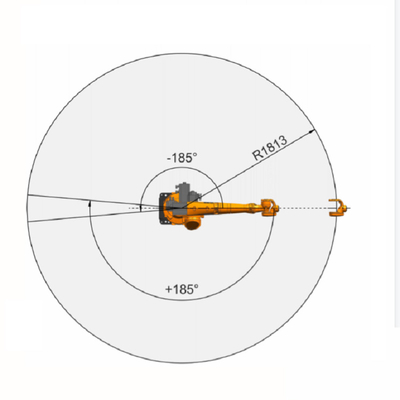

Maximum reach
1813 mm
Maximum payload
23.9 kg
Rated payload
20 kg
Pose repeatability (ISO 9283)
± 0.04 mm
Number of axes
6
Footprint
430.5 mm x 370 mm
Weight
approx. 250 kg
Ambient temperature during operation
5 °C to 45 °C (278 K to 318 K)
Controller
KR C4
Teach pendant
KUKA smartPAD
Packing & Delivery
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 3
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 4
ONE Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine packing with fumigation wooden frame, WG:250KG
Company Profile
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 5
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 6
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 7
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 8
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 9
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 10
Xiangjing(Shanghai) Mechnical Electrical Tech. Co., Ltd is is the subcompany of Dr. Industry Group Co., Ltd, was founded in January 2015, We focus on discrete industrial automation and process industrial automation, and we can design, develop, install, testing, debug industrial robot, its units and related accessories including fixture, transmission device, positioning device and control system, we can provide Welding Robot, Spray Painting Robot, Transfer Robot, and Grinding Robot, we have many reference in automation industry in China. Meanwhile we are agent of KUKA , ABB, Yaskawa industrial robots, and distributor of FUNC industrial robot. we are the important partner of them in the China market, we have more than 7 engineers with rich expericence, who had been worked for ABB or KUKA more than 10 years. meanwhile Dr. Industry Group can provide ABB and KUKA robot training for our customer, there are weeekly training courses. In the process of industrial automation field, Xiangjing can provide control valve, actuator, postioner, and regulator, Xiangjing is the improtant partner of Emerson process management in the China market, we are fisher and rosemount project authorized agent in China, we can provide fisher control valve, fisher regulator, rosemount pressure, level, thermal transimtter, rosemount wireless instrument, Daniel Flowmeter, ASCO Solenoid Valve, TopWorx Switch and so on. We have many references on power, chemical industry in China. Xiangjing has two teams, one is for discrete industrial automation and the other is for process industrial automation with rich experience, we are good partner of you.
FAQ
1. who are we?
We are based in Shanghai, China, start from 2015,sell to South America(40.00%),Southeast Asia(30.00%),Eastern Europe(20.00%),Western Europe(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Robot/ Robot Positioner/ Robot Track/ Robot Gripper/ Robot Control System

4. why should you buy from us not from other suppliers?
1: We are with ABB,KUKA,FANUC,YASKAWA agentand many other brands agent for years. 2: Majority of our engineer from KUKA, ABB. The engineering manager worked in ABB company for 19 years. 3: We can offer majority of industrial controlled component.

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Western Union;
Language Spoken:English,Chinese
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 11
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 12
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 13
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 14
Production Name
Welding Robot
Power supply
20 ~ 25V
Protection rating
IP54
Weight
1.25kg

FAQ


Q.How Long will You Need before Delivery? A:We have many common models in stock, so that wecan deliver the goods very soon(less than 3 days).

Q.What is Your Payment Term?
A:Normally T/T 30% in advance, balance to be paidbefore delivery, We also support the trade assurance,OlA.
Q:What is Trade Assurance? A:Trade Assurance is a free service by Alibaba.comthat's designed to help create trust between buyers andsuppliers.Trade Assurance helps buyers in the event ofshipping and quality-related dispute.
Q:Does Trade Assurance Charge Fees? A:No.Trade Assurance is free for both buyers andsuppliers.
Q:What Kind of Trade Terms Can You Do?
A:EX-WORKS,FOB,CFR,CIF,etc.
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 15
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 16
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 17
Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine 18
