| 원래 장소: | 상하이, 중국 |
|---|---|
| 브랜드 이름: | JAKA |
| 가격: | $23,000.00/Sets 1-9 Sets |
| 포장 세부 사항: | 한의 E5 코봇 로봇과 로봇은 로봇 암 제어기가 하드 페이퍼 box<br>Package 정보로 패키징된 채로 6 주축을 무장시킵니다 :(2개 박스) <br>5kg 코봇 팔 GW : |
| 공급 능력: | 50개 세트 / 세트마다 달 |
| 애플리케이션: | 취급되, 분사하는 것 용접한 골라내어 붙이기 | 특징: | 손 안내 |
|---|---|---|---|
| 상태: | 새롭습니다 | 보증: | 1년이요 |
| 힘: | 400W, 350 Ｗ | 전압: | DC 48V |
| 적용 가능한 산업: | 공장을 제조한 의류 상점, 기계류 정비소, 음식 & 음료 공장, 농장, 식당, 상점을 출력한 식품 판매점, 식료품 상점 | (KG에) 짓누르세요: | 13.5 |
| 전시실 위치: | 아무것도 | 화면 출하검사: | 제공됩니다 |
| 기계류 테스트 리포트: | 제공됩니다 | 마케팅 타입: | 보편적 제품 |
| 핵심 구성 요소의 보증: | 1년이요 | 핵심 구성 요소: | PLC, 압력 용기, 기어 |

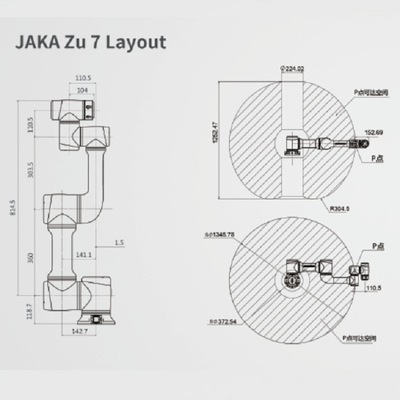

| 상품 이름: | 코봇을 용접하는 자카 코봇 Zu7 6 주축 협업화 로봇 | 타입: | Zu7 |
| 중량: | 22 킬로그램 | 화물: | 7KG |
| 한계: | 814 밀리미터 | 주축: | 6 |
| 반복성: | ±0.03 | 툴 속도: | 1.5m/s |
| IP 스페크p 시피케이션: | IP54 | 공항: | 상하이 |

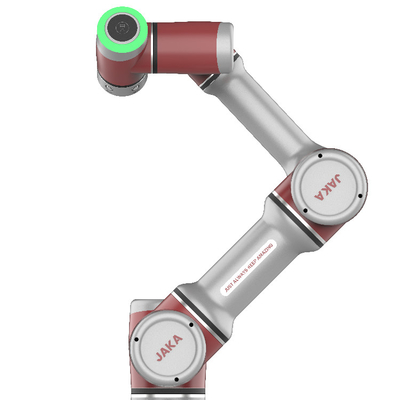

Jaka Cobot Zu7 6 axis collaborative robot with controller and teach penden for welding cobot
Safer work
With Elfin robots, there is no need to pay extra for safe operation the same as traditional robots. The robots have high collaborative performance and can perform a protective stop immediately when they encounter resistance, ensuring the safety among co-worker, workpieces, and production equipment.
More Flexible Deployment
Elfin robots can be mounted at any angle and installed anywhere to minimize the impact on the production lines. Redeployment requires very short time and is very suitable for small batches, customized and short-cycle production, which is the best choice for automation transformation.
Easier Operation
Elfin robots can be easily teached by moving the end of the arm to the desired position or desired trajectory,which is greatly saves the programing time. 10 minutes is absolutely enough for building one simple pick and place program.
Fast, Stable Ether CAT bus communication
The controller and robot joint adopt industrial EtherCAT communication, which enables the system to have excellent control performance and strong an-interference ability.
| Specifications | |||||
|---|---|---|---|---|---|
| type | E3 | E5 | E5-L | E10 | E15 |
| weight | 17kg | 23KG | 24KG | 40KG | 45KG |
| payload | 3kg | 5kg | 3.5kg | 10kg | 15kg |
| reach | 590mm | 800mm | 950mm | 1000mm | 700mm |
| power | 100W in typical cycle | 180W in typical cycle | 350W in typical cycle | 450W in typical cycle | |
| joint range | ±360° | ||||
| joint speed | J1-J4 180°/S J5-J6 200°/S | J1-J4 180°/S J5-J6 200°/S | J1-J4 180°/S J5-J6 200°/S | J1-J2 120°/S J3-J4 135°/S J5-J6 180°/S | J1-J2 120°/S J3-J4 135°/S J5-J6 180°/S |
| tool speed | 2m/s | ||||
| repeatability | ±0.05mm/±0.03mm(under normal conditions) | ||||
| degree of freedom | 6 | ||||
| control box size | 536*445*319mm | ||||
| end I/O port | digital input:3,digital output:3,analog input:2 | ||||
| control box I/O port | digital input:16,digital output:16, analog input:2,analog output:2 | ||||
| I/O source | 24V 2A | ||||
| communication | TCP/IP/MODBUS | ||||
| programming | graphical programming,remote process call | ||||
| IP classification | IP54/IP66 | ||||
| collaborative operation | 10 advanced configurations for safety | ||||
| main material | aluminum alloy | ||||
| working temperature | 0-50℃ | ||||
| power input | 200-240V AC,50-60Hz | ||||
| cable | cable to connect the control box:5m,cable to connect teach pendant:5m | ||||
