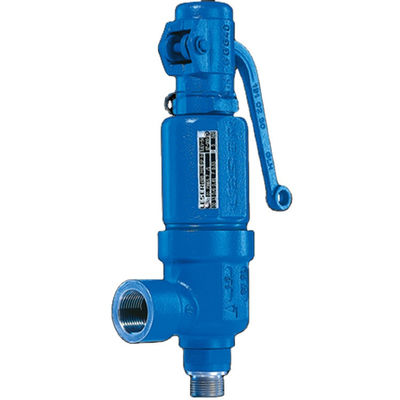

Type 460 Spring Loaded Heating And Air Conditioning Safety Valve

Type 460 Spring Loaded Heating And Air Conditioning Safety Valve
Type 460 Spring Loaded Heating And Air Conditioning Safety Valve
기본 정보
원래 장소: 독일
브랜드 이름: LESER
모델 번호: 타입 440
최소 주문 수량: 1개 세트
포장 세부 사항: 통
배달 시간: 6~8 주
지불 조건: T/T, D/A, L/C, D/P, 서부 동맹
공급 능력: 50 세트/달
지금 연락
주입구에 있는 공칭 직경: DN 15 - DN 20 | 3/4 - 1 실제 오리피스 직경 d0: 13일부터 17일까지 밀리미터 | 0.51 - 0.69에
실제 오리피스 영역 A0: 133 - 241 mm2 | 0.21 - 0.37 in2 압력: 1일부터 10일까지 바 | 14.5 - 145 표준 평방 인치 당 폰드
온도 (DIN EN에 따라): 최고 120까지 'Ｃ | 최고 248까지 'Ｆ 본체 소재: 1.4104 (주입구), 0.7043 (수단) | 1.4104 (주입구), 유연한 Gr. 60-40-18 (수단)
밸브 연결: 스레드 (선택적인) 벨로우즈 재료: EPDM
부하형: 스프링 하중식 승인: TRD 721, PED/ DIN EN ISO 4126-1, PED/ AD 2000-merkblatt A2, EAC
하이 라이트:

DN15 Pressure Reducing Valve

,

EPDM Bellows Air Conditioning Safety Valve

,

1.4104 Thread Safety Relief Valve

Type 460 Spring Loaded Heating And Air Conditioning Safety Valve



Product Description


Specification


item

value

Warranty

1 Year

Type

Safety Relief Valves

Place of Origin

Germany

Brand Name

LESER

Model Number

Type 460

Application

Industries

Structure

Safety

Nominal Diameter at Inlet

DN 15 - DN 20 | 3/4" - 1"

Actual Orifice Diameter d

13 - 17.5 mm | 0.51 - 0.69 in

Actual Orifice Area A

133 - 241 mm² | 0.21 - 0.37 in²

Pressure

1 - 10 bar | 14.5 - 145 psig

Temperature (in accordance with DIN EN)

up to 120 °C | up to 248 °F

Body Material

1.4104 (Inlet), 0.7043 (Outlet) | 1.4104 (Inlet)

Load Type

Spring loaded

Valve Connection

Thread

Bellows Material (optional)

EPDM

Application

Heating/Air conditioning


Packing & Delivery


Type 460 Spring Loaded Heating And Air Conditioning Safety Valve 0

Type 460 Spring Loaded Heating And Air Conditioning Safety Valve 1

Safety Plastic Valve For Heating Plants Type 440 Spring Loaded Heating And Air Conditioning Flanged Safety Valve Spare Parts kits blister packed for quick and easy usage for Tartarini Pressure Reducing Regulators as valv valvpacked with one fumigation wooden box Box size: 60*30*40 (cm) WG:4.5 Kg
